Wireless Datalogger & Transmitters

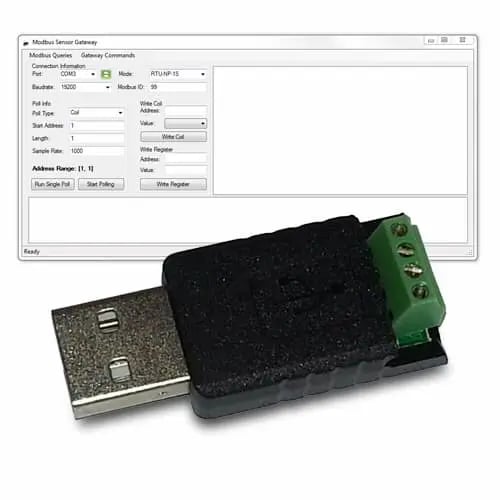

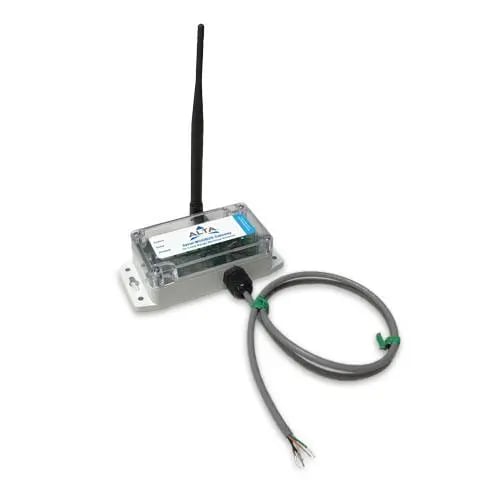

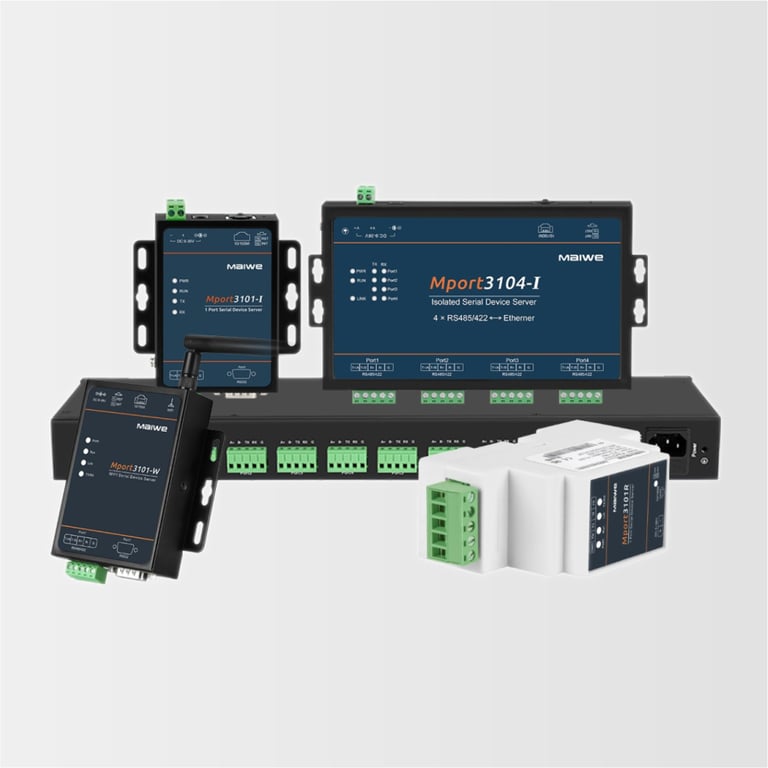

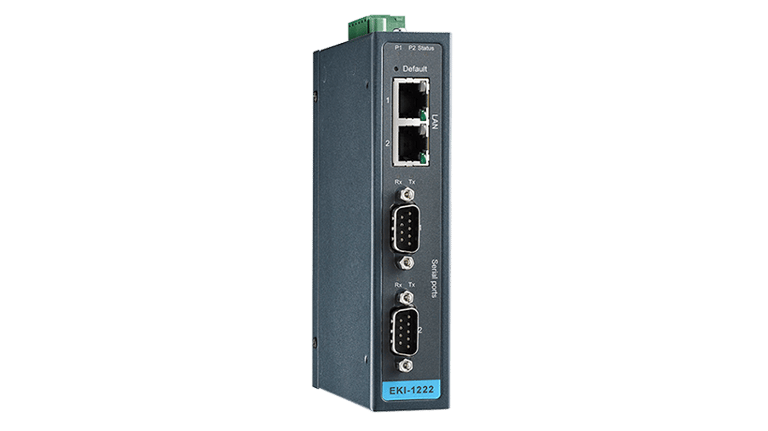

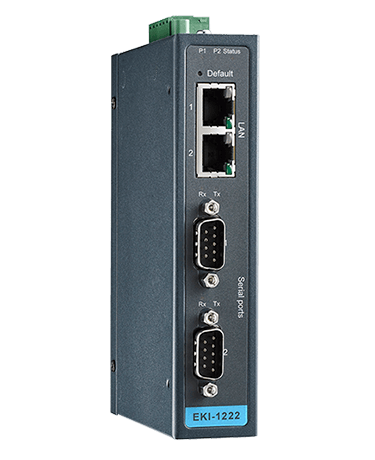

Modbus TCP / Modbus RTU output

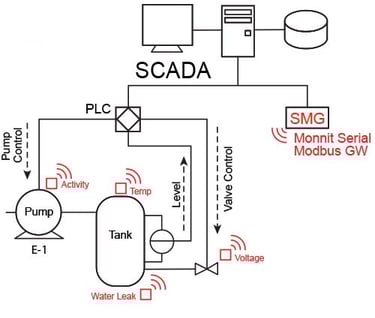

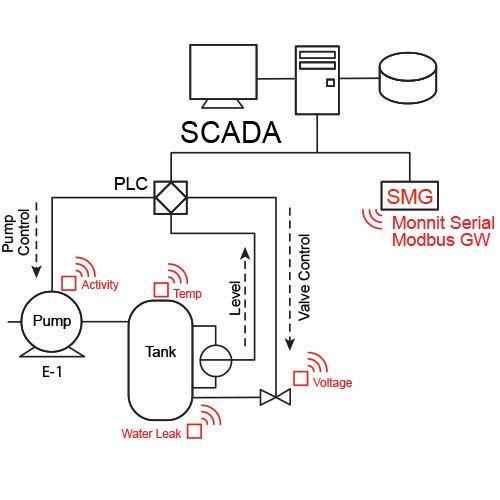

Modbus RTU Network Diagram

Most Dataloggers are available in 3 variances:

Commercial

• Uses 1x CR2032 Coin Battery

• Battery life: 2+ years

Enterprise

• Uses 2x 1.5V AA Alkaline or 2x Lithium Batteries

• Battery life: 10+ years

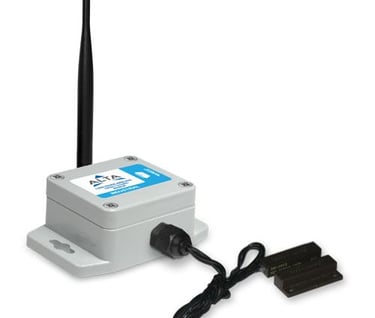

Industrial

• Uses 1x 3.6V AA Lithium Thionyl Chloride Battery

• Battery life: 10+ years

• With On/Off Button

• IP65 Weatherproof

Humidity, Temperature, Pressure, Differential Pressure, Air Velocity, Air Quality and Vibration Dataloggers

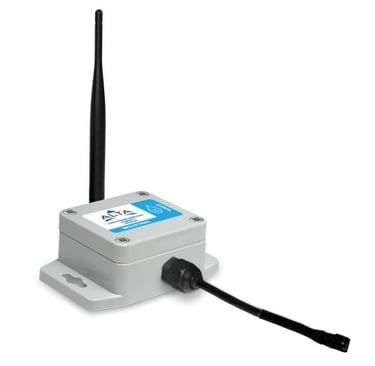

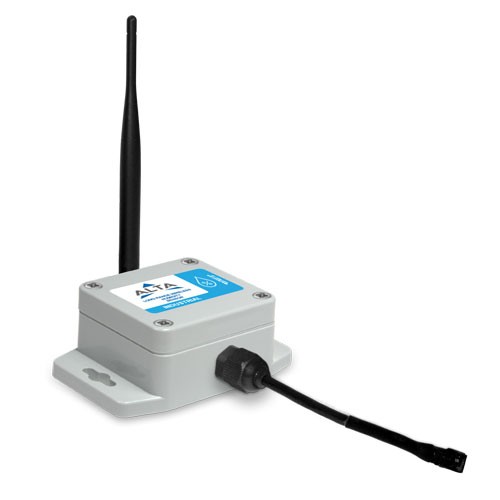

Humidity & Temperature

Whether it’s artifacts or data, you know that maintaining a relative humidity (RH) between 40–60% percent can be the difference between proper preservation and irreversible loss.

Monnit ALTA® Wireless and Next™ Wi-Fi Humidity Sensors remotely monitor RH with a +/- 3% accuracy (between 10–90% RH), temperature, and dew point in facilities or enclosures. If the humidity exceeds your specified limits, these scientific-grade sensors instantly alert you via text, email, or call for swift correction.

A Humidity Sensor for Every Business

As one of Monnit’s broadest (and most popular remote monitoring solutions), the ALTA® Humidity Sensors are available in wireless commercial, enterprise, and industrial models. Next™ Wi-Fi and Power over Ethernet (PoE) Humidity Sensors are also available. Based on the model selected, you can further tailor the sensor with options including 3–25’ leads, 7-month NIST Certification, and solar power.

The depth and breadth of our Humidity Sensors make them favored by Ivy League museums, data centers, manufacturers, life sciences, food processors, agriculture, and art galleries. Select a sensor below to track conditions surrounding mission-critical systems, sensitive inventory, and invaluable assets.

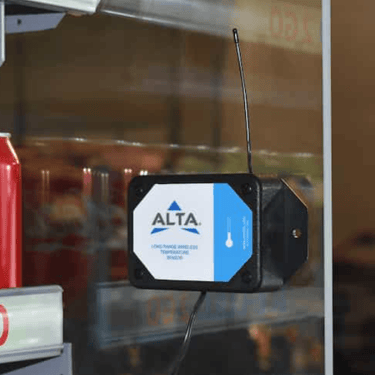

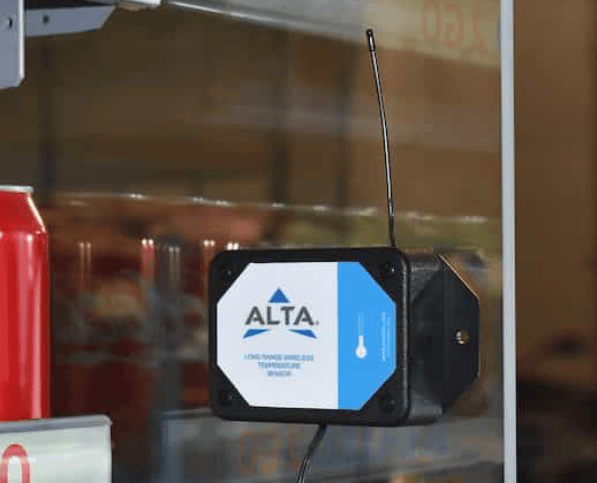

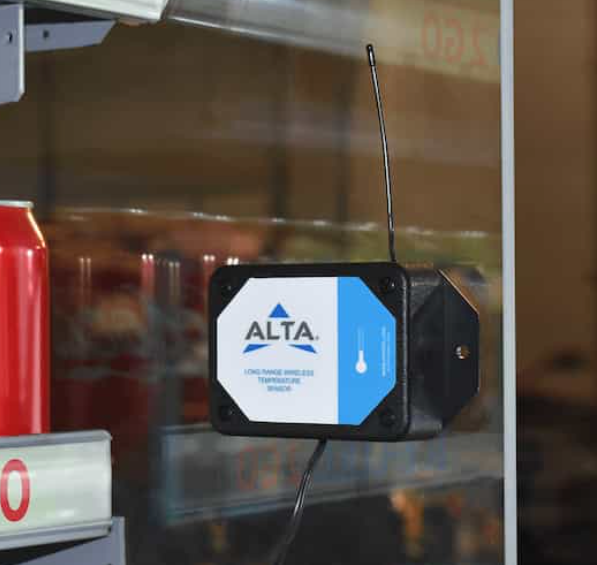

Temperature

You need an automated remote monitoring system to keep assets like food, vaccines, equipment, and environments at safe and comfortable temperatures 24/7. Monnit ALTA® Wireless Temperature Sensors won the 2024 IoT Product of the Year Award as one of the most innovative solutions powering the IoT.

Monnit Temperature Monitoring Solutions—with Standard, High, Low, Duct, and Digital Temperature Sensors—monitor for temperature changes that can degrade performance, assets, sustainability, or safety. If temps rise or fall outside thresholds, get an alert via email, text, or call to step in and protect your organization and assets.

Keep Critical Assets at Safe Temperatures

People count on Monnit Sensors to monitor temperatures in food storage and services, commercial facilities, greenhouses, cold chain logistics, vaccine fridges, data centers, HVAC systems, water management, and more. Automatically monitor and report temperature to prevent excursion events. Meet data-logging compliance in pharmaceutical laboratories and food production.

Monnit offers its ALTA Wireless, Next™ Wi-Fi, and PoE•X Power over Ethernet (PoE) Temperature Sensors monitor temperatures spanning from -200°C to 0°C (-328°F to 32°F) to -50°C to 370°C (-58°F to 700°F). Custom Monnit Temperature Sensors are also available.

Benefit From Built-In Advanced Features:

• Fully automated data logging—ideal in pharma and food service and production

• Cloud-based monitoring with real-time alerts—take action immediately if temperatures rise or fall outside set ranges

• 25-month NIST Traceable Calibration Certification for ALTA and Next Standard Temperature Sensors and a 13-month certificate for ALTA and Next Low Temperature Sensors—these options help ensure regulatory compliance in many use cases.

• Plug and play simplicity—install sensors and start monitoring within 15 minutes

• Bank-grade security—protect data communications with high-level authentication

Types of Datalogger:

• Standard (-40 to 125°C ), IECEx model available

• High Temperature (-50 to 370°C )

• Low Temperature (-200 to 0°C)

• Duct Temperature (-40 to 60°C )

• Digital Temperature (-40 to 125°C ), with display

• Wireless Motion, Temperature and Humidity 3-in-1

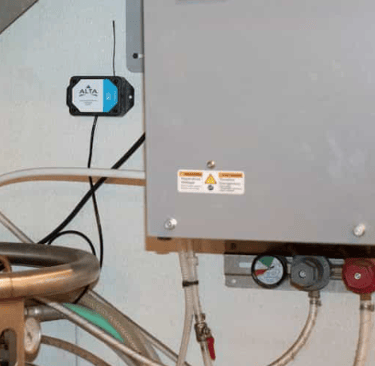

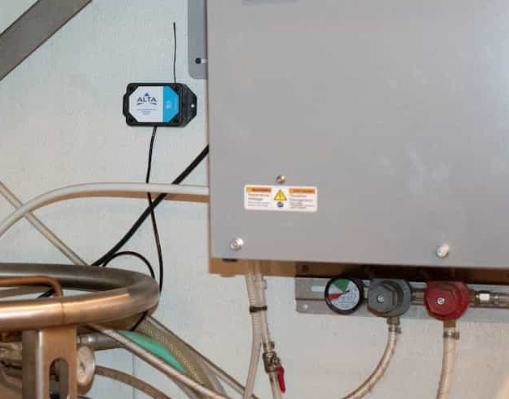

Pressure

Monnit’s battery-powered ALTA® Wireless Pressure Meters—winners of the 2024 Industrial IoT Product of the Year Award—monitor gas, liquid, or vapor supply lines. If the pressure within a line, machine, pump, or specialized area (e.g., negative pressure tent or cleanroom) falls out of a user-defined range, users are alerted via text, email, or call.

Available in 50, 300, 750, and 3000 pounds per square in gauge (PSIG) meters, these sensors use a five-volt pressure transducer to measure the pressure within a supply line. Collected data is transmitted to iMonnit Sensor Configuration and Management Software for analysis and action.

Work-Site Ready

These wireless pressure meters are available in industrial-grade and AA battery-powered enterprise-ready sensors.

• AA-battery meter options: an on/off switch and a line-powered device with battery backup

• Added industrial options: intrinsically safe, IECEx-certified ALTA-ISX 300 PSIG and high-gain leaded puck antenna

• Available in 50, 300, 3000 PSIG

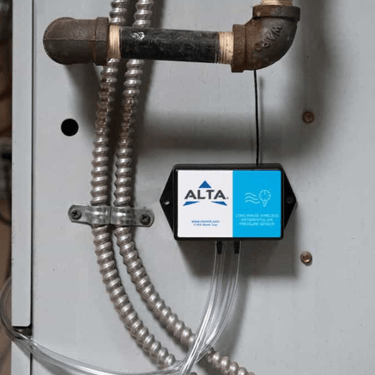

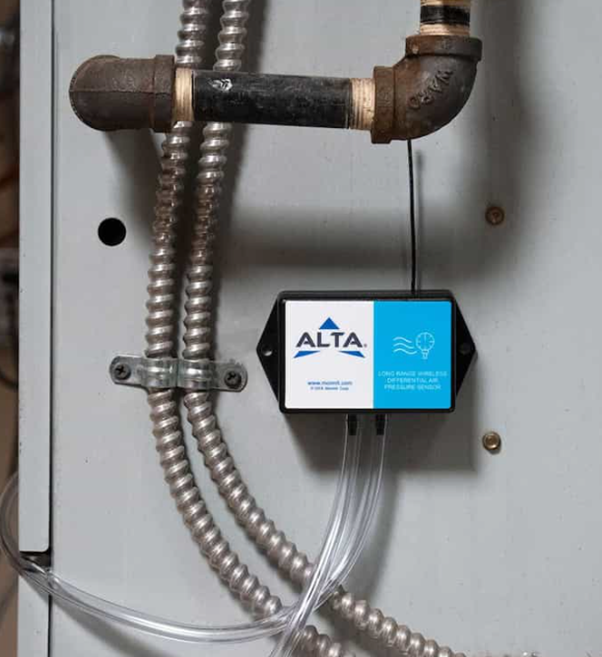

Differential Pressure

Within 15 minutes, Monnit’s ALTA® Differential Air Pressure Sensor installs to remotely monitor filters, systems, and components. Be sure equipment is at peak—whether ventilating temporary medical crisis tents or an R&D cleanroom.

How an Air Pressure Sensor Works

This battery-powered pressure sensor measures the air pressure difference (with a range of -500 Pa to 500 Pa) between its dual ports. If, based on your parameters, the sensor measures a pressure differential between its ports, you’re alerted via text, email, or call. A difference likely points to a dirty filter or a machine/system that needs immediate service.

Differential Air Pressure Monitoring in Action

Remotely monitoring air pressure helps facility managers keep air filters clean, HVAC systems performing optimally, and extends system longevity.

But monitoring differential air pressure is about more than HVAC filter status.

Hospitals, pharma firms, and manufacturing facilities count on high-performance HVAC to manipulate air, contain infectious particles, and assist with proper filtration. This function is vital for the freestanding patient isolation structures that enable infectious patient treatment and maintain pharmaceutical purity.

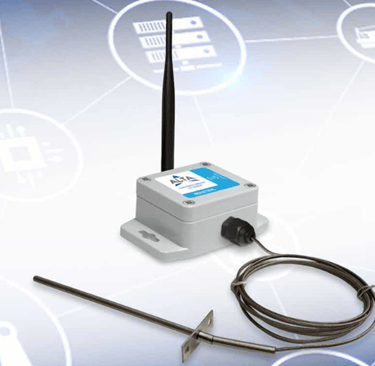

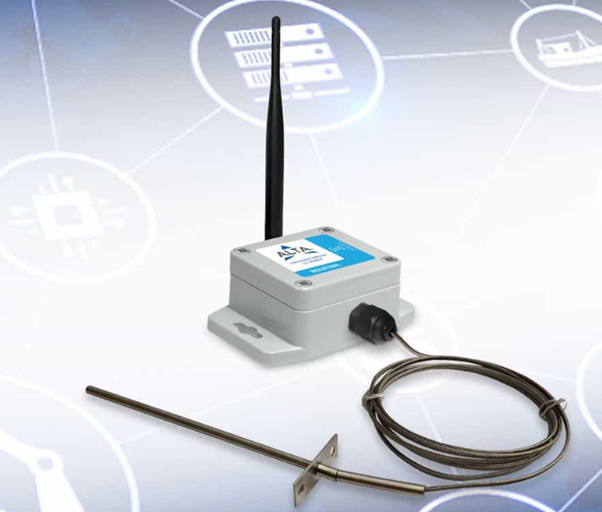

Thermocouple

The ALTA® Wireless Thermocouple Sensors leverage Monnit’s award-winning remote monitoring platform to remotely monitor high-temperature applications, such as commercial ovens, kilns, and chimneys. Users benefit from a wireless data transmission range of 1,200+ ft, bank-grade security, and a temperature range of up to 400°C (752°F).

Monnit’s thermocouple is user-programmed to sleep for a specified interval, awake, capture analog data, and then convert this measurement into a temperature. If the sensor captures temperatures outside of user-specified thresholds, an alert is sent via text, email, or call. Monnit’s hardwired thermocouples feature a needle-style probe at the end of a 6’ lead (a K-Type Quick Connect Thermocouple is also available).

A trio of high-temperature monitoring solutions

Monnit offers its US-made wireless thermocouples in commercial, enterprise-ready, and industrial-grade types to suit a broad range of applications. Monnit Labs, our custom products division, can support users with a highly specific need or OEMs seeking a turnkey solution for their upcoming designs with custom temperature monitoring solutions.

Choose one of Monnit’s Wireless Thermoelectric Sensors below for high-temperature applications within industrial, commercial, and scientific settings.

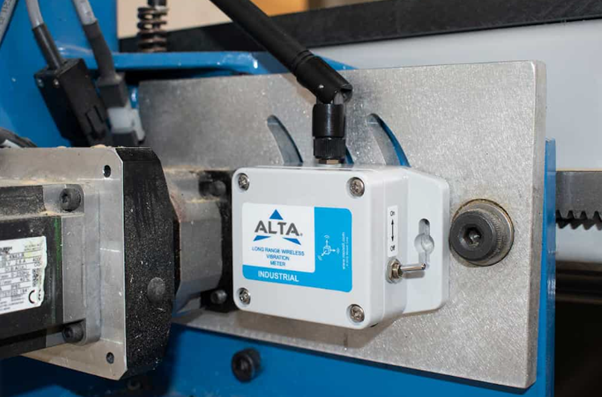

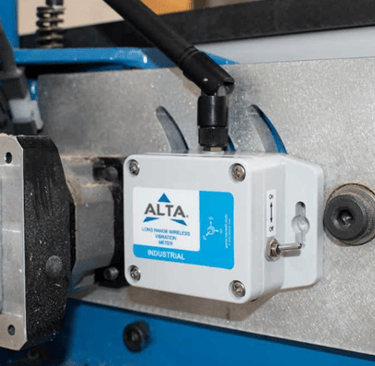

Accelerometer & Vibration

If it moves or vibrates, know when and how much.

Monnit’s motion and vibration sensors capture data from machines, processes, and critical infrastructure. When excessive vibration, jarring harmonics, or abnormal motion detected, an alert is issued via text, email, or call.

These sensors are offered in compact, AA-battery powered, and industrial-grade devices to support diverse applications and facilities.

Examples of what Monnit monitors & why:

• Bearing heat and vibration—excesses foreshadow failure.

• Perimeter fences—extreme force might mean unauthorized access.

• Security gates/arms movement—erratic motion indicates a breach or impending failure.

• Bay door or arm/gate tilt—track position of barriers, equipment arms, and machinery.

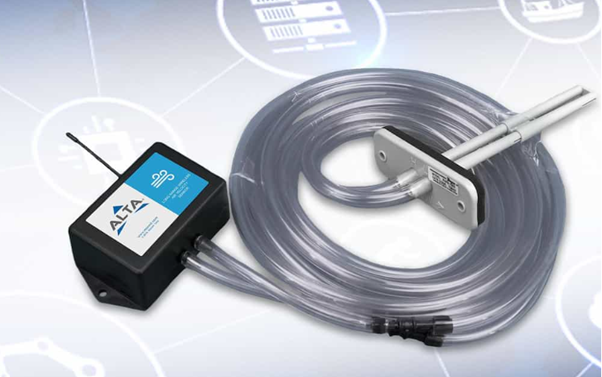

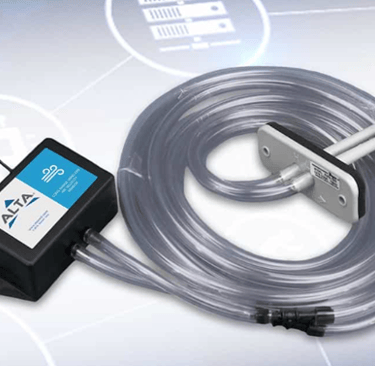

Air Velocity

The Monnit ALTA® Wireless Air Velocity Sensor helps facility managers and maintenance techs gauge and track HVAC performance by measuring system airflow and building/room pressure.

How an Air Velocity Sensor Helps

If air velocity (speed) deviates from user-set limits, an alert is issued instantly via text, email, or call. Early notifications allow HVAC contractors or maintenance techs to prevent failure (or predict and shorten downtime). Collected data also enables facility maintenance professionals to maintain comfort and proper ventilation, as well as track air volume filter status.

How the Sensor Works

This air velocity/speed sensor measures the pressure difference between its two ports, accounts for ambient temperature and altitude, and determines system airflow speed in meters per second (m/s). The sensor is calibrated and temperature compensated.

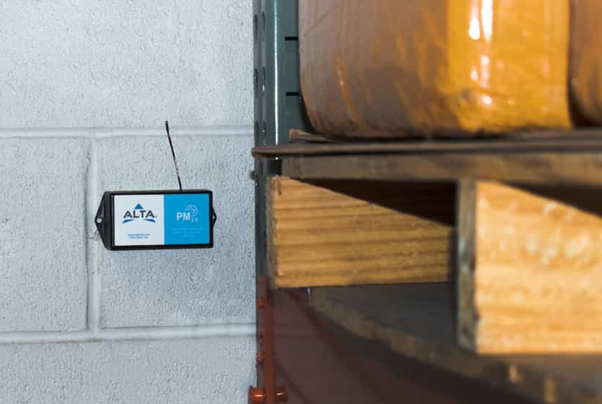

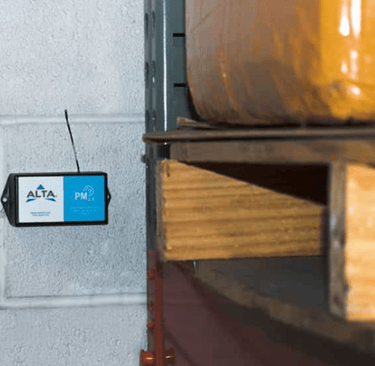

Air Quality

This mount-and-monitor device measures Particulate Matter that’s coarse (PM10), fine (PM2.5), and ultrafine (PM1) inside mines, production facilities, commercial kitchens and facilities, as well as business buildings.

If PM levels exceed user-defined limits, an instant alert (via text, email, or call) is issued to help facility operators ensure safety. Additionally, sensor data can support HR and healthcare professionals in maintaining regulatory worksite compliance.

What’s the (particulate) matter?

Elevated levels of PM10 (2.5–10 um) particle pollution irritate the respiratory tract and eyes; smaller PM2.5 (1.0–2.5 um) particles can penetrate deep into the lungs. As the most dangerous of all, PM1 (0.3–1.0 um) can slip through the lungs and penetrate organs.

How Monnit’s PM Meter works

The meter contains a small fan that collects an ambient air sample. PM content is then measured with a laser that scatters based on the number and size of particles suspended in the sample. This sensor is battery-powered (two AAs); line power is optional.

Within 15 minutes, Monnit’s air quality meter can be installed to help protect occupants and workers from PM levels that irritate and sicken

Level, Moisture & Gas Dataloggers

Light

Are you lighting up valuable assets like art in a gallery, exhibits in a museum, or plants in a greenhouse?

Then it’s essential to know how long these possibly priceless things should be under the lights, plus the intensity of the lighting, so you keep them protected and healthy.

ALTA® by Monnit Wireless Lux and PAR Light Meters can measure all your lighting systems in virtually any application or use case to ensure assets receive the exact light they require.

Our Lux (light in Latin) Light Meter is ideal for monitoring light-sensitive materials and assets used in pharmaceutical manufacturing, food ingredient production, art galleries, museums, facility management, and more.

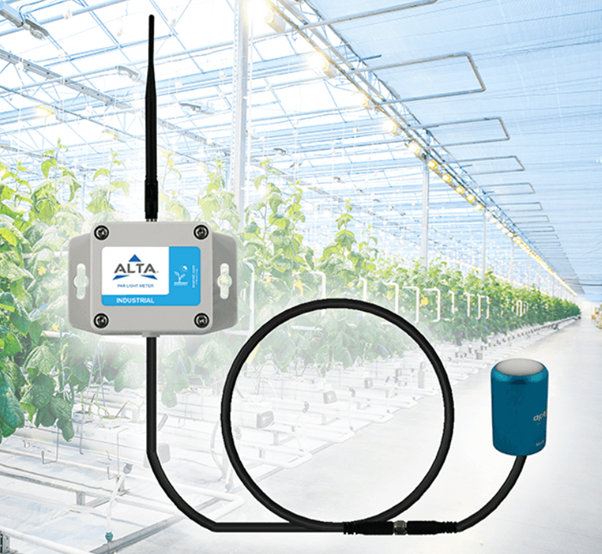

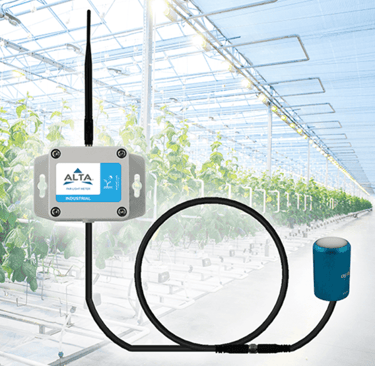

The PAR (photosynthetically active radiation) Light Meter is perfect for connecting the performance of greenhouse and grow house lighting systems or even sunlight for outdoor agricultural operations to the Internet of Things.

Both Light Meters provide the actionable data you need to make the best lighting decisions for the critical assets that are most important to your organization.

Key Lighting Terms

Lux is a unit of illumination and energy used to measure light intensity from a lamp or light source as perceived by the human eye.

PAR or photosynthetically active radiation is the waveband in the light spectrum that plants use for photosynthesis.

Spotlight on Savings

Discover how our Lux and PAR Light Meters can help you optimize lighting across your operations to protect assets and your bottom line. Learn more about our innovative light meters below.

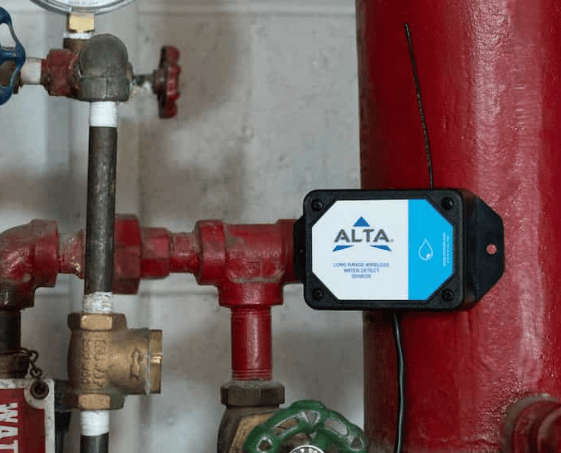

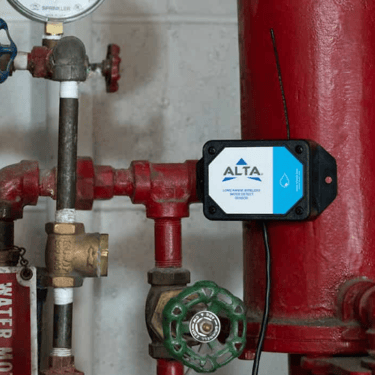

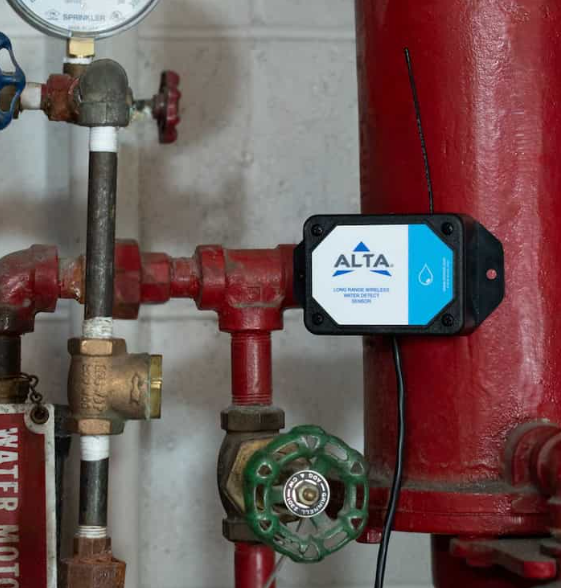

Water Detection

Life-sustaining, yet wholly destructive, water damages, sickens, and injures.

This is why businesses use Monnit Water Detect Sensors—if a leak occurs, an alert is issued via text, email, or call. Early detection helps prevent mold growth, slip and falls, or extensive damage to mission-critical systems.

More Ways to Monitor for Leaks & Spills

Data centers, factories, offices, mixed-use retail centers—no two are alike. This is why Monnit offers a broad range of water detect sensors and custom monitoring solutions. Explore all water monitoring solutions below.

Turnkey Savings

In 15 minutes, setup a Monnit ALTA® Wireless or Next™ Wi-Fi Water Detection Sensor to detect hazards.

Leak monitoring also helps economize operations. Did you know that leaky pipes lose six billion gallons of clean water daily in the U.S. alone?

Now you do, and now you know how to guard occupants, assets, and the bottom line.

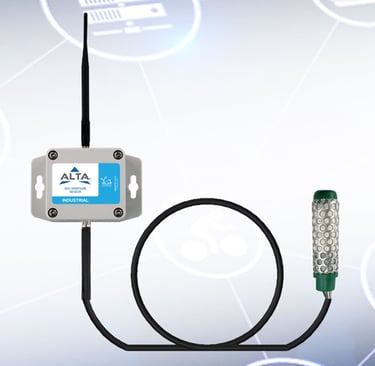

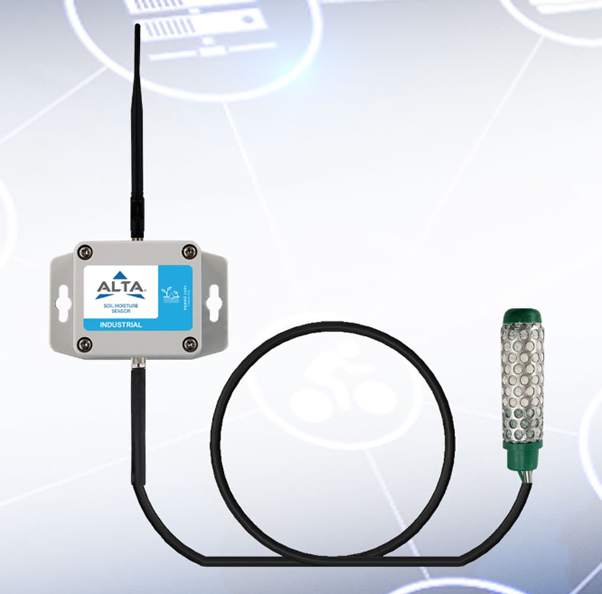

Soil Moisture

t’s easy to know your soil’s water and temperature condition with the ALTA® by Monnit Soil Moisture Sensor. It provides a highly effective way to improve irrigation scheduling and efficiency. You’ll know when and where to water your crops, plants, or landscape from the data you gather.

See water tension to prevent water stress.

The Soil Moisture Sensor measures soil water tension (matric potential) and temperature. With a resistive granular matrix element, you can optimize your tension parameters to determine the earliest indication of water stress and make sure you irrigate before it reaches that point. The unique element feature delivers consistent calibration without needing to recalibrate for every installation.

The Sensor also has a thermistor-based temperature element. Its readings will help you assess temperature -40°C to 125°C (-40°F to 257°F) and the moisture’s temperature compensation, eliminating the need to measure moisture every time the soil temperature changes.

More key features of our Soil Moisture Sensor include:

• Safe and durable in both hot and freezing temperatures

• Measure within a range of 0 to 240 centibar (cb) or kilopascal (kPa)

• Corrosion-resistant and made of high-grade stainless steel

• Internally compensated for commonly found salinity levels

• Easy to install and use compared to traditional tensiometers

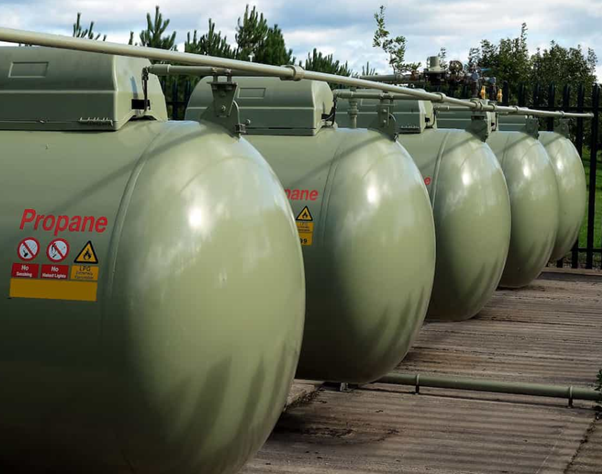

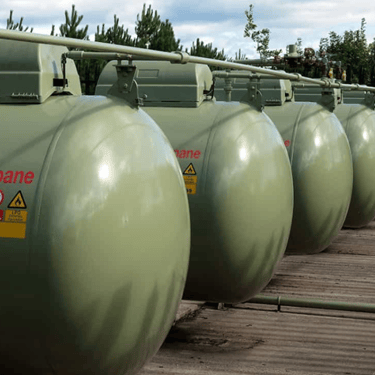

Propane Tank Monitor

The benefits of Monnit’s ALTA® Propane Tank Level Monitor run deep for those selling propane and propane accessories. Compatible with Sr & Jr R3D® Remote Ready gauges, this sensor installs within 15 minutes, allowing propane providers to remotely monitor tank levels.

If levels fall below user-set limits, this LPG level sensor alerts designated personal via text, email, or call.

Four seasons & reasons to install a level sensor

1. Providers always know:
   The sensors eliminate time-consuming physical checks. Within seconds a tech can check levels via smartphone or PC.

2. Customers never run dry:
   Widely dispersed customers don’t need to worry about running out—a tremendous value-add for providers.

3. Streamline operations:
   Remote monitoring eliminates in-the-field checks, saving vehicle wear-and-tear and freeing personnel to address other needs.

4. Customer satisfaction:
   Switching to needs-based delivery minimizes interruptions and saves customers from reinitialization fees.

Provider-tested and -trusted, the propane sensor below brings tremendous value to businesses like yours—join them today.

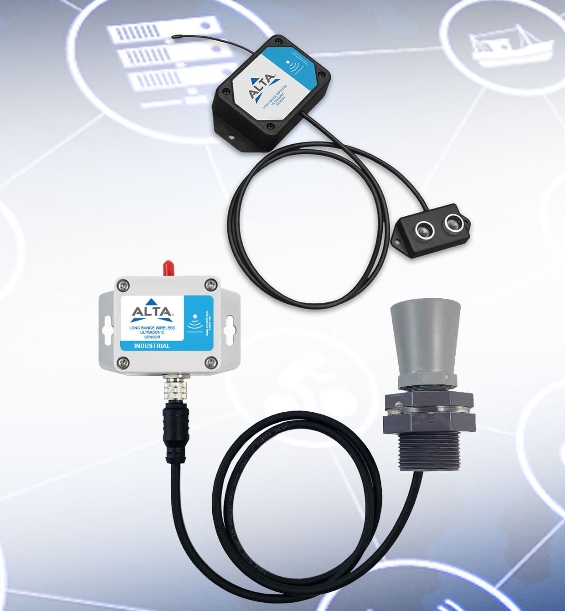

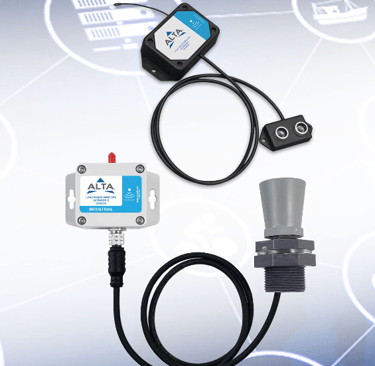

Ultrasonic Level

You can install Monnit's ALTA® Wireless Ultrasonic Ranging Sensors within 15 minutes to measure liquid and other asset levels, track inventory status (based on distance), and detect traffic. Should the status for any of these variables deviate from user-defined limits, a sensor alert is sent via text, email, or call.

On the Level?

Instantly know with Monnit's industrial-grade and enterprise-ready ALTA Ultrasonic Sensors.

They use the speed of sound to determine the distance between them and objects. It sends a high-frequency pulse and records the time it takes to receive an echo. The time difference determines the distance of a tank level or an object's presence. The sensors are impervious to the target surface and color and compensate for temperature and humidity.

Track trucks, be alerted of falling/rising liquid levels, know the amount of product on a shelf, and more. Benefit from the versatility of the ALTA Industrial Ultrasonic Sensor's two mountable, detachable 3-foot leads. You can choose from a lead with a Through Hole Mount or a Threaded National Pipe Tapered (NPT) Hole Mount.

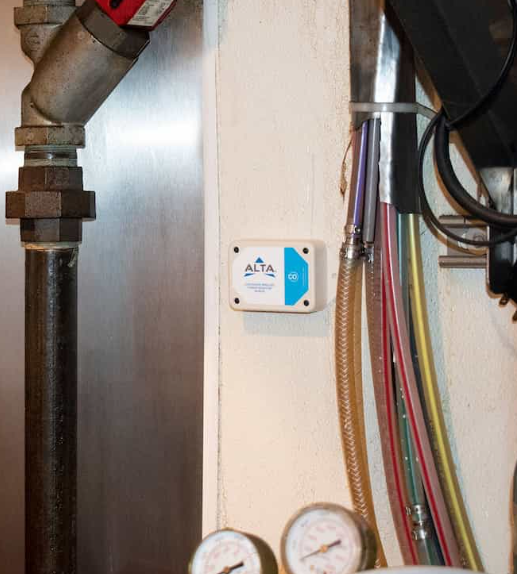

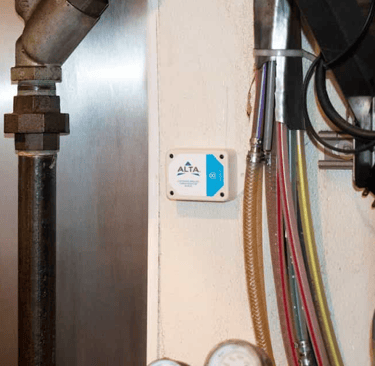

Gas Detection

Monnit’s ALTA® Gas Detection Sensors each wirelessly monitor for carbon monoxide (CO), hydrogen sulfide (H2S), or carbon dioxide (CO2). If gas concentrations exceed preset thresholds, designated personnel are alerted via text, email, or call.

Gas Sensors Claim a Vision Award for Life Safety

These gas sensors undercut traditional sensor prices by 15–20%, install within 15 minutes, provide an industry-leading 1,200+ foot wireless range, and offer a 12+ year battery life (two AA’s).

Efficiency, technological advancement, and contribution to tenant satisfaction earned Monnit’s Gas Detection Sensors a Vision Award. Hosted by FacilitiesNet.com, the competition recognizes innovative facility management technologies.

Dataloggers available:

• Carbon Monoxide (CO) , 0-1000ppm

• Carbon Dioxide (CO2), 0-10000ppm

• Hydrogen Sulfide (H2S), 0-50ppm

Contact, Motion & Press Button Dataloggers

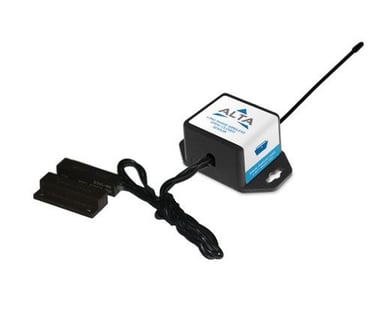

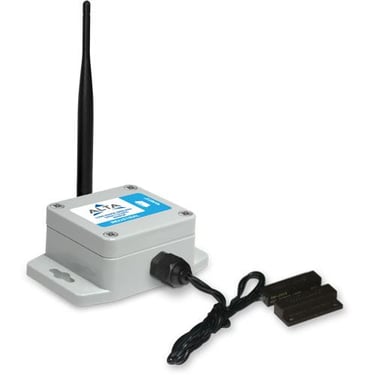

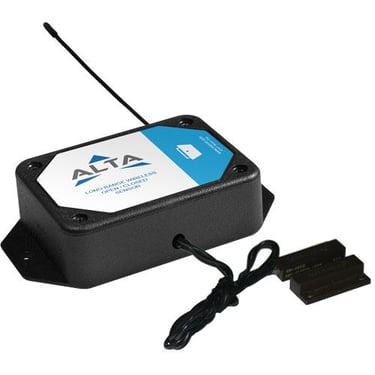

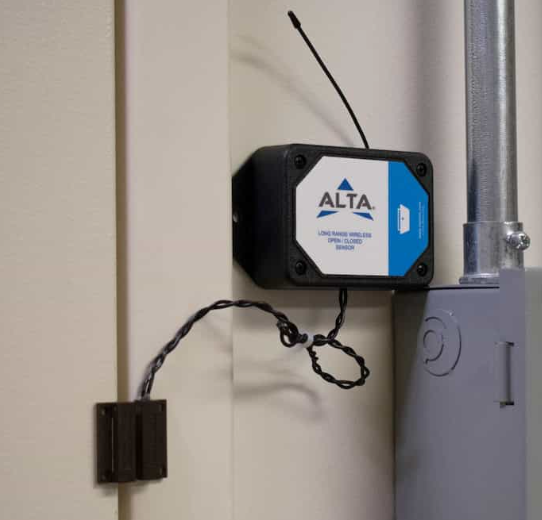

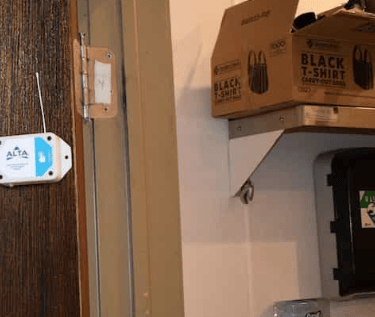

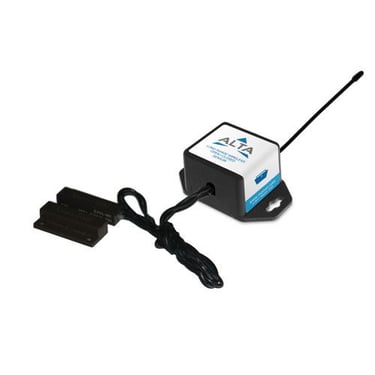

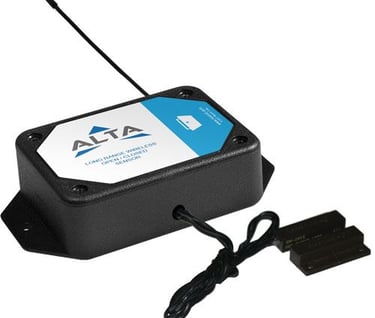

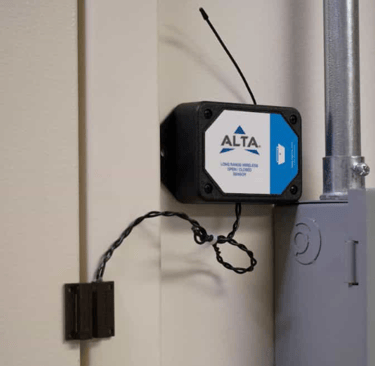

Open-Closed

These popular ALTA® Wireless and Next™ Wi-Fi Open-Closed Sensors help you remotely monitor door, window, cabinet, or lid status. Get an alert via text, email, or call if something’s been left ajar or accessed when it shouldn’t.

The Monnit Open-Closed Sensor uses an external switch and trigger magnet to detect status—when the magnets meet, a door or window is closed. The sensor can be configured via iMonnit only to send notifications during specific dayparts, such as after-hours. Data also sheds light on access patterns—a boon for the food service, healthcare, and hospitality sectors.

Ready for restaurant walk-ins, vaccine fridges or ultralow temperature (ULT) freezers, retail, and more, Monnit Open-Closed Sensor types include compact, Wi-Fi-enabled, Power over Ethernet (PoE), and long-range wireless low-profile enterprise or industrial devices. We also offer a variety of options to tailor these sensors to your needs.

Add an ounce of prevention to your business or facility with one of the Monnit Open-Closed Sensors below.

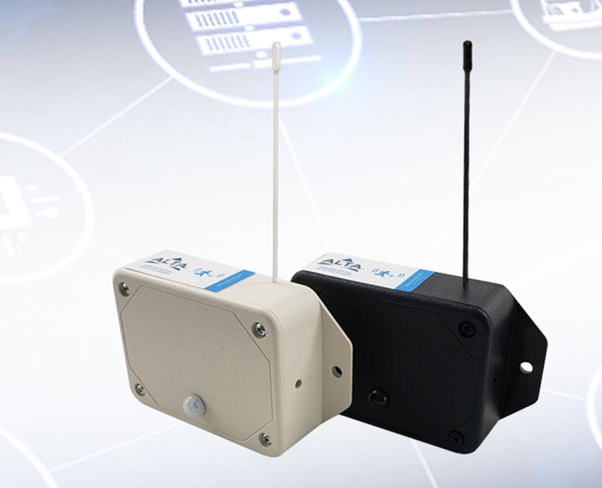

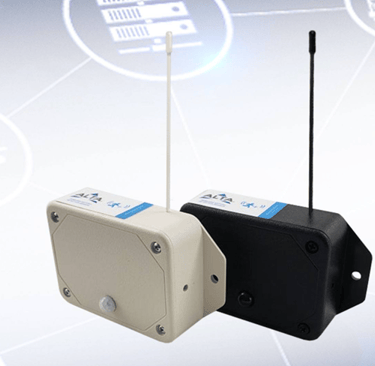

Motion & Occupancy

Monnit ALTA® Wireless, Next™ Wi-Fi, and Power over Ethernet (PoE) Sensors detect motion via passive infrared (PIR) technology to augment facility security, protect inventory, or optimize building services through use, access, and occupancy data. A wide-angle option is also available for facility managers wishing to audit the occupancy of desks, conference room tables, or hallways as part of a building use evaluation.

Plus, our three-in-one ALTA Wireless Motion+ Sensor can monitor movement, ambient temperature, and relative humidity (RH) in various facilities, including offices, warehouses, factories, data centers, hospitals, labs, kennels, greenhouses, and more.

Detect & Protect

Install and monitor within 15 minutes with these turnkey sensors that alert you via text, email, or call if people or animals move within a range of up to 4.5 meters or 15 feet. Know instantly if a sensitive or restricted area is accessed, if assets or animals are in safe climate conditions, or analyze traffic data to economize HVAC use and enhance sanitation.

These motion detection devices are available in compact coin cell (CC) battery, enterprise AA, Wi-Fi, or PoE models. The ALTA Standard and Next Motion Sensors feature a software-adjustable motion range of 9’, 12’, or 15’ and an 80° viewing angle, making them ideal for general motion detection. The ALTA Wide-Angle Motion Sensor features less range but a 110° viewing angle.

Two AA batteries power the ALTA Wireless Motion+ Sensor. It detects movement within an 80° viewing angle, temperature between -40°F to 257°F (-40°C to 125°C), and 0–100% RH. No Monnit ALTA PIR Motion Detection Sensor uses cameras—the sensors only record heat signals.

Thousands of businesses and institutions count on Monnit to safeguard assets, people, and animals. Start detecting and protecting what matters most to your business with one of the ALTA, Next, and PoEX Motion Detection Sensors below.

Vehicle Detection & Counter

Customers are driven to get in and out—Monnit’s ALTA® Wireless Vehicle Detect-Counter Sensor collects the data that accelerates service. Count traffic that’s coming and going. Or detect (and track) vehicle time in a service bay or a curbside retail spot.

Housed in a weathertight enclosure, this sensor’s industry-leading 1,200’ range eliminates cords and limited access posed by competing sensors. Once anchored to a parking spot, entrance, or service bay, the dual-mode sensor can:

• Monitor bay entrance and exit times

• Alert of vehicle arrival or departure

• Track area access

• Analyze and compare vehicle service times per bay, tech, or franchise

• Count vehicles entering/exiting a specific point

• Track traffic at self-serve facilities

• Study customer behavior throughout the day

• Manage fleets

This vehicle detect sensor can alert users (via text, email, or call) if a monitored variable, such as excessive wait times, exceeds user-set limits. It is also configurable for vehicle axle count—ideal for municipal and commercial fleets. The device does not record steps on the 9’ detection hose.

Press Button

Need help providing swift customer service or deploying a large-scale sensor network? Instant alerts from Monnit’s Wireless Button Press Sensor support you by streamlining sensor deployment and expediting customer service requests.

Upon pressing the sensor’s button, a notification is sent to iMonnit software. An on-sensor LED confirms software response, and an alert is issued via text, email, or call. Front-desk and custodial personnel can be instantly notified if a restroom needs maintenance; engineers and facility managers use the sensor to evaluate installation sites and validate sensor performance.

Sizing up service

Given its popularity among hospitality, healthcare facilities, and multinational enterprises, the sensor is available in an ultra-compact CC sensor, conventional AA battery-powered model, or a user-friendly Wi-Fi-enabled sensor.

Find the right fit for your business below with a Wireless Button Press Sensor to expedite customer service or sensor network validation.

AC, Voltage, Resistance & Pulse Dataloggers

Gas Transmitter

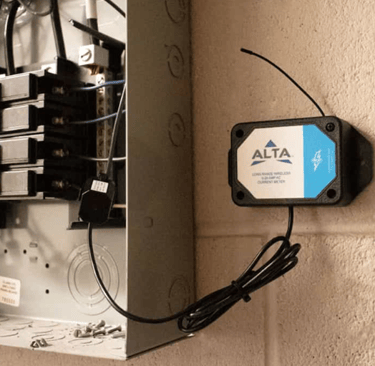

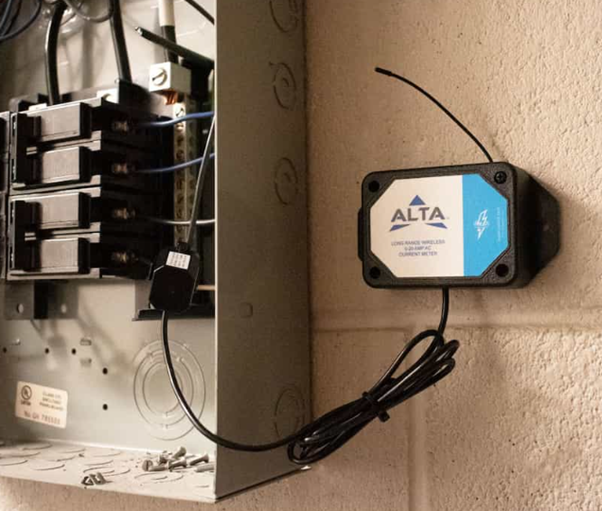

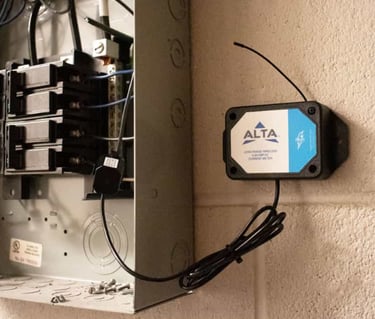

AC

You can install Monnit ALTA® Wireless AC Current Meters within 15 minutes to provide insights on machine health or system performance via current usage. These sensors track the minimum, maximum, and average RMS current, and amp hours. If power consumption spikes or plummets beyond user-defined limits, an alert is sent via text, email, or call.

Fluctuating power consumption often indicates a machine needs maintenance, is nearing the end of its service life, or has an unexpected power supply issue. These current sensors are also ideal for submetering.

Large or Small, Track It All

Deploy Monnit Wireless AC Current Meters indoors or out—choose from enterprise-ready or weatherproof, industrial-grade sensors in 20-amp, 150-amp, and 500-amp models. The ALTA Industrial 150 and 500 Amp AC Current Meters feature detachable leads with M12 5-pin connectors, which are ideal for easily installing the current transformers (CTs) in an electrical panel.

Explore Monnit's portfolio of current meters below and discover the right solution for your business or facility.

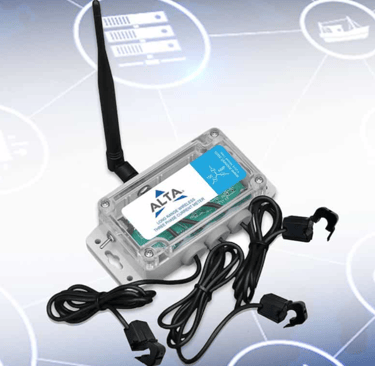

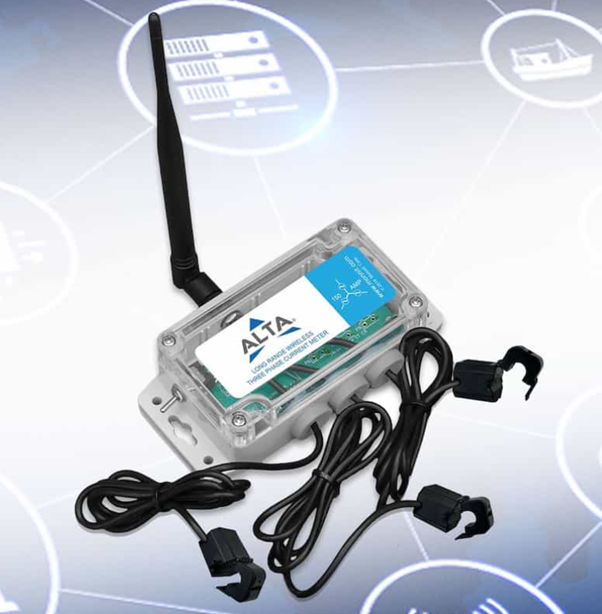

Three Phase

Building owners and machine operators count on Monnit ALTA® Wireless Three-Phase AC Current Meters to identify irregularities with equipment and power supplies, preventing minor issues from becoming costly problems.

Available in 20, 150, and 500-amp industrial-grade devices, these current meters track incoming power. Get an instant sensor alert via text, email, or call if any of the following deviates from your preset thresholds in any of the three phases:

• Amp-hours

• Root mean square (RMS) current (min, max, and avg)

• Duty cycle for each phase

• Combined amp hours of all phases

Key Benefits

• Simple, safe install: Clip the meters' current transformers around your three-phase power system's wires—no direct power connections are needed.

• In-depth data: Comprehensive sensor data is delivered in easy-to-share formats for analysis and budgeting.

• Machine health and performance insight: Know if a machine operates more than it should or if consumption spikes.

• No more surprises: Accurately project electricity bills and use data to pinpoint ailing machinery.

Within 15 minutes, any of the ALTA Three-Phase Current Meters below will help trim electrical bills and protect productivity. The ALTA 150 and 500 Amp Three-Phase Current Meters feature detachable leads with M12 5-pin connectors, which are ideal for easily installing the current transformers (CTs) in an electrical panel. Learn more about incorporating remote monitoring solutions into your operations today.

Available in 20, 150 & 500 Amps

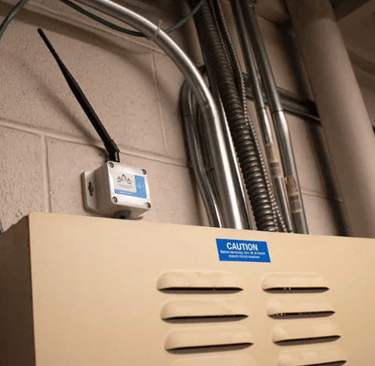

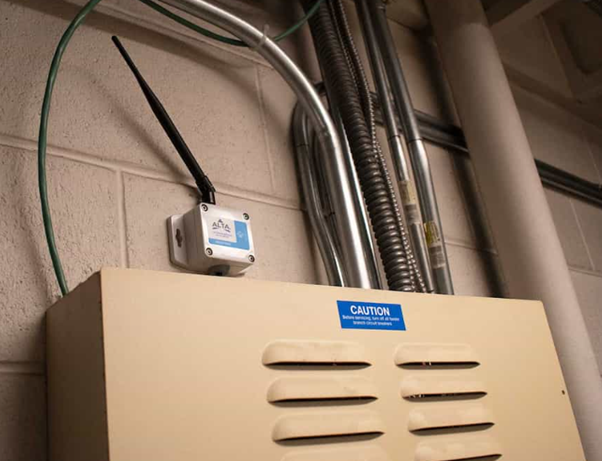

Voltage

Monnit’s Wireless Voltage Meters and Voltage Detect Sensors remotely monitor machine or system power status

Instant alerts, instant action
If a monitored value rises or falls beyond user-set thresholds, an alert is sent via text, email, or call. Know when essential appliances are operative (helpful for remote locations or decentralized operations). Be sure that a is pump active ahead of a storm.

How voltage meters work

Monnit’s 0–200 VDC or 0–500 VAC sensors measure the voltage between two electrical points, such as batteries or other sensors; measured voltage is reported.

How voltage detect sensors work

The 0–200 VDC and 0–500 VAC devices are triggered by electricity’s presence or absence in batteries or other sources, such as solar equipment.

Find the right voltage sensor below to keep machines running and your business moving forward.

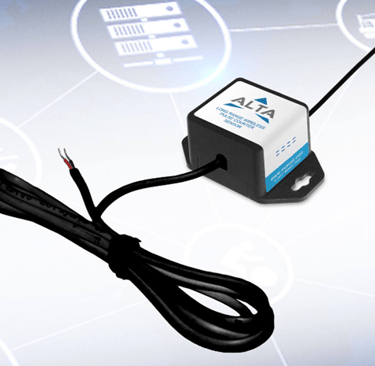

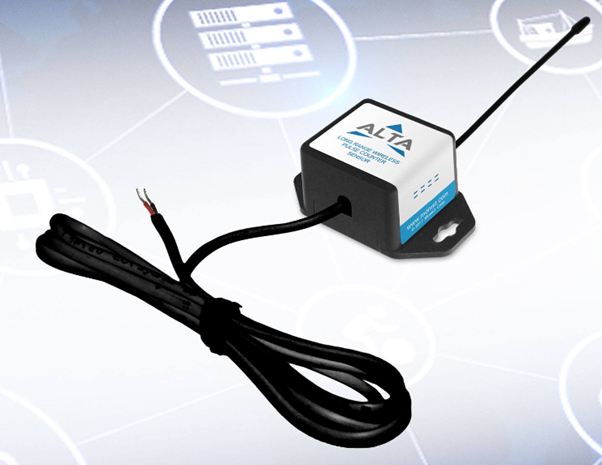

Pulse

Monnit's ALTA® Wireless Pulse Counters gather intelligence from your operations by remotely monitoring an item's usage frequency or actuations. Data can help improve service or protect productivity.

Why a pulse counter?

Imagine what you could save by knowing what's occurring with water, gas, and airflow meters. Consider how you might optimize staffing by understanding foot traffic thanks to turnstile or door actuations or how often someone sits in your forklift.

You decide when the sensor tracks actuations or usage, such as during a production shift. If the counter detects a deviation from your pre-set limits in iMonnit Software, an alert is issued via text, email, or call.

How do electronic pulse counters work?

Within 15 minutes, this turnkey pulse counter integrates with a contact or mechanical switch. Monnit's battery-powered electronic counter then tracks how often a pulse is detected within a specified time when contact occurs between the two wired endpoints.

Monnit's Pulse Counters are available in a compact Commercial coin cell battery model, an Enterprise-ready AA unit, and an Industrial-grade pulse counter. Discover the right wireless pulse counters below for your operations.

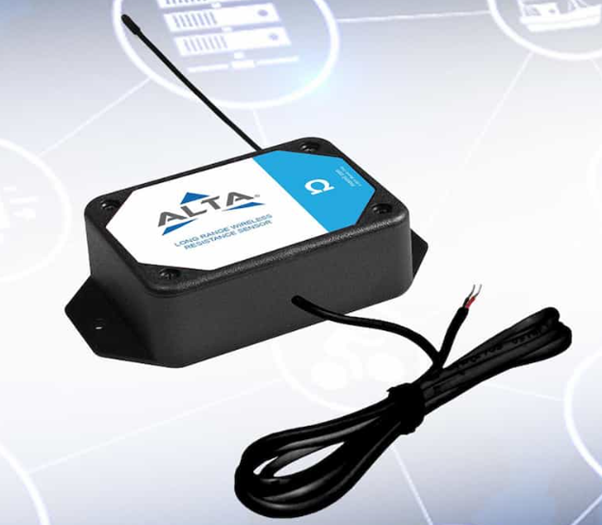

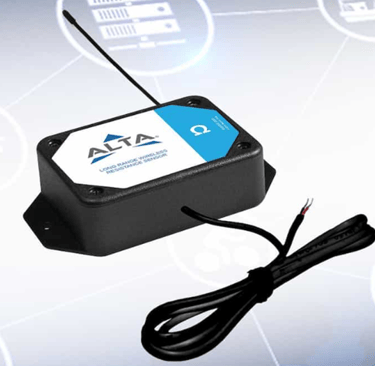

Resistance

Within 15 minutes, Monnit’s ALTA® Wireless Resistance Sensors can be retrofitted to scientific sensors or equipment, such as batteries, that are used in the process and manufacturing sectors.

Resistance Monitoring Made Easy

A popular transducer interface solution for passive resistance loads up to 250K Ohms, Monnit’s sensors awake at user-specified times to monitor a resistive load. Captured analog data is then calculated into a resistance measurement. If the observed resistance deviates from user-set thresholds, the user is notified via text, email, or call. Instant alerts prevent unnecessary (and costly) downtime or the loss of research and irreplaceable samples.

Find the right fit for your equipment

Monnit’s Resistance Sensors are available in a compact CC model, enterprise-ready AA variant, and an industrial-grade resistance sensor to support diverse businesses.

Any of Monnit’s Wireless Resistance Sensors below would be a great fit with your mechanical or electrical transducers—beyond knowing equipment status, collected data (e.g., temperature or weight) can help refine processes.

Dry Contact & Interface

Monnit ALTA® Wireless Dry Contact Sensors, Resistive Bridge, and other Interface Meters detect insights about equipment power status, strain gauges, inclinometers, door access, voltage, turnstile actuations, machinery, facility and factory automation, production lines, or mechanical systems and barriers. You set what thresholds the sensors should observe; alerts are sent by email, text, or voice call to authorized personnel if there's a breach. We also offer Power over Ethernet (PoE) and Next™ Wi-Fi Dry Contact Sensors.

How do these sensors improve operations?

They integrate with many sensors and nearly any button, switch, system, or industrial and scientific device to collect data, including voltage, actuations, revolutions, or open/close counts. Sensor data paints a picture of equipment and system performance or facility use.

Monnit Sensors can be installed and configured within 15 minutes.

Explore the Monnit Interface, including Resistive Bridge Meters and Dry Contact Sensors below, to improve processes, maintain equipment, and better understand operations.

Types of Dataloggers:

• Single-Input Dry Contact

• 5-Input Dry Contact

• 0-5 VDC Interface Volt

• 0-10 VDC Interface Volt

• 0-20mA Current

• Resistive Bridge

Gateways

4G & Ethernet Gateway

Monnit International ALTA Cellular Gateways ensure Monnit ALTA Wireless Sensors and iMonnit Sensor Configuration and Management Software can operate on the world’s leading cellular networks. Our International ALTA Cellular Gateways and iMonnit (cloud or on-premises) aggregate sensor data and send notifications via text, email, or voice call if user-defined conditions are met or exceeded.

The ALTA IoT Gateway showcases 4G Long-Term Evolution (LTE) Category M1 (CAT-M1) and NarrowBand-Internet of Things (NB-IoT) 2 (NB2) cellular technologies to keep ALTA Wireless Sensors connected to the Internet around the world.

Remote Monitoring Made Easy

No PC or Internet connection is required for setup—upon powering an ALTA 2G or IoT Gateway, they automatically connect to Monnit’s server. This simplicity makes it ideal for global use, particularly remote installs without Internet access.

Ethernet Gateway

Monnit ALTA® Ethernet Gateway and ALTA XL® Ethernet Gateway allow ALTA Wireless Sensors to communicate with the iMonnit™ Wireless Sensor Monitoring and Notification System without the need for a PC. Simply provide power and plug the ALTA Ethernet Gateway or ALTA XL Ethernet Gateway into an open Ethernet port with an Internet connection. Then it will automatically connect with our online servers, providing the perfect solution for commercial locations with an Internet connection.

The ALTA XL Ethernet Gateway features a powerful wireless transceiver with up to 1 Watt transmission strength and an amplified receiver. The ALTA XL Ethernet Gateway can send and receive data communications with ALTA Sensors 2,000+ feet through 18+ walls in commercial building environments.

Gateway Features

• Updated Modbus TCP-IP and SNMP to support new sensor profiles

• Internet MIB (management information base) is implemented on the gateway for industry tools to auto-discover the gateway and understand its features

• Enhanced SNMP walk to only show data for valid OIDs (sensor data that exists in the system)

• SNMP Interface: in addition to integers, the gateway has additional OIDs to present the same data in HEX and string (human-readable) format

Modbus RTU Gateway

The ALTA Serial MODBUS Gateway (SMG) acts as a data concentrator for Monnit’s ALTA long range wireless sensor networks. This device allows you to connect up to 50 wireless sensing devices, per gateway, to your existing serial MODBUS RS-232C and RS-485 sensing and control infrastructures.

Monnit has recognized the importance of using open standards like Modbus, allowing ALTA wireless sensors to be used in the majority of industrial applications.

Modbus is often used to connect a supervisory computer with a remote terminal unit (RTU) in supervisory control and data acquisition (SCADA) systems. Modbus allows for communication between many (approximately 247) devices connected to the same wired network. Therefore, ALTA SMG’s allows for seemingly unlimited wireless expansion to a traditional wired network.

Features of the ALTA Serial MODBUS Gateway:

• Communicates with MODBUS RTU / ASCII Serial Protocols.

• Supports RS-232C / RS-485 Interfacing.

• Integrates into your existing backend monitoring systems.

• NEMA 4X / IP66 Rated Enclosure.

We recommend purchasing the Serial Modbus Gateway USB programmer and software to help you configure and use your Monnit SMG Gateway.

Accessories

Site Survey

Do you want to know the best placement of your ALTA Wireless Sensors? The ALTA Site Survey Tool tells you the ALTA Sensors’ radio signal performance before you install them. Using the tool, you can know the places in your facility or your site where the signal is optimal for your Internet of Things (IoT) network.

Take the Guesswork Out of Sensor Placement

The ALTA IoT data communications platform offers delivery and reception reliability up to 2,000+ feet through 18+ walls. When you perform a signal reliability test in any area with the ALTA Site Survey Tool, you see the precise TRUESIGNAL™ reliability percentage shown on its LCD along with an indication of Pass, Poor, or Fail.

TRUESIGNAL is an average measurement of ALTA signal strength while accounting for environmental interference like electrical work, cement and rebar, machines, and other wireless devices. Configure your preferred signal reliability settings in iMonnit—Mission-Critical, Strong, or Functional—depending upon the sensing environment, your use case, and how frequently you need sensor data.

Alert

The ALTA Wireless Local Alert provides three ways to notify people about critical changes and sensor readings from your Monnit IoT network. The Local Alert flashes a red LED, sounds an audible alarm, and displays the important message upon receiving a notification. The Local Alert can also display sensor readings from any sensor on the same account.

Get Alerted in the Way You Prefer

Simply add the Local Alert to a network in your iMonnit account, and it will automatically be in the list of devices that can receive messages from a sensor via a gateway.

When setting up notifications to the Local Alert, you can choose what the device should do when it receives a message. Set up a notification to flash the red LED, sound alarming tones, display text on the LCD screen, or any combination of these alerting features.

With the multiple ways the Local Alert can get your attention combined with an email, text, or phone call on your mobile device, it’s difficult to miss what your sensors are trying to tell you.

Modbus RTU USB Programmer

Configure your Monnit gateways with this USB sensor device. The Programmer features a Configuration Utility with an RS485 to USB Converter, as well as Serial Modbus configuration software. Also assists with sensor testing and expanding sensor networks.
