Motion
Motion General Description

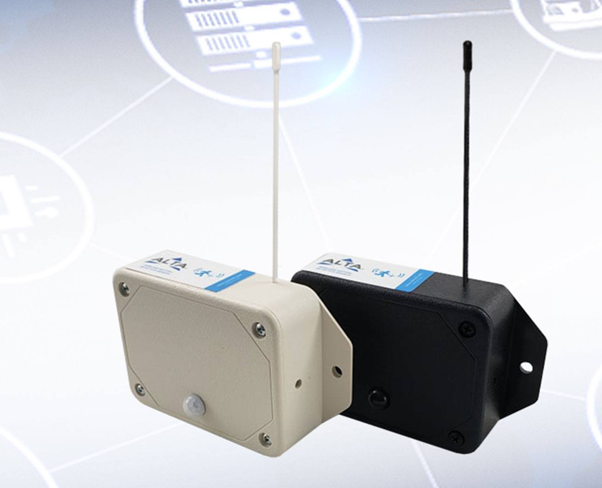

The ALTA Wireless Motion Sensor detects movements made by people and animals within a range. ALTA Wireless Motion Sensor+ also measures ambient temperature and relative humidity (RH).
Key Features
Accurately detects occupancy and movement
Software adjustable range (9-ft / 12-ft / 15-ft)
Standard and wide-angle lens options (80° / 110°)
Operating Temperatures: Limited to the operational ange of the sensor body (enclosure and battery)
High-accuracy humidity and temperature measurements(Motion+ only)
Principles of Operation
The Wireless Motion Sensor detects motion, temperature and relative humidity (Wireless Motion+ Sensor), based on a user-configurable time interval or Heartbeat. Using a passive infrared (PIR) motion sensing element, the sensor detects relative changes in temperature caused by warm bodies moving through the sensing area. The Motion+ Sensor is also equipped with a high-accuracy RH/temperature sensing element. Once the sensor detects movement, or if a RH/temperature threshold is crossed, it communicates to a gateway. The gateway will immediately attempt to securely send the message to iMonnit, or another approved data service.
Features of Monnit ALTA Sensors
Wireless range of 2,000+ feet through 18+ walls1
Frequency-Hopping Spread Spectrum (FHSS)
Best-in-class interference immunity
Best-in-class power management for longer battery life2
Encrypt-RF® Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):
10-minute Heartbeats = ~ 22 days
2-hour Heartbeats = ~ 266 days
Automatic over-the-air updates to sensor firmware (future-proof)
Free iMonnit Basic Online Wireless Sensor Monitoring and Notification System to configure sensors, view data, and send alerts via SMS text, email, and voice call
1 Actual range may vary depending on the environment and gateway.
2 Battery life is determined by the sensor reporting frequency and other variables. Other power options are also available
