Environmental Monitoring System

Dickson
OCEAView

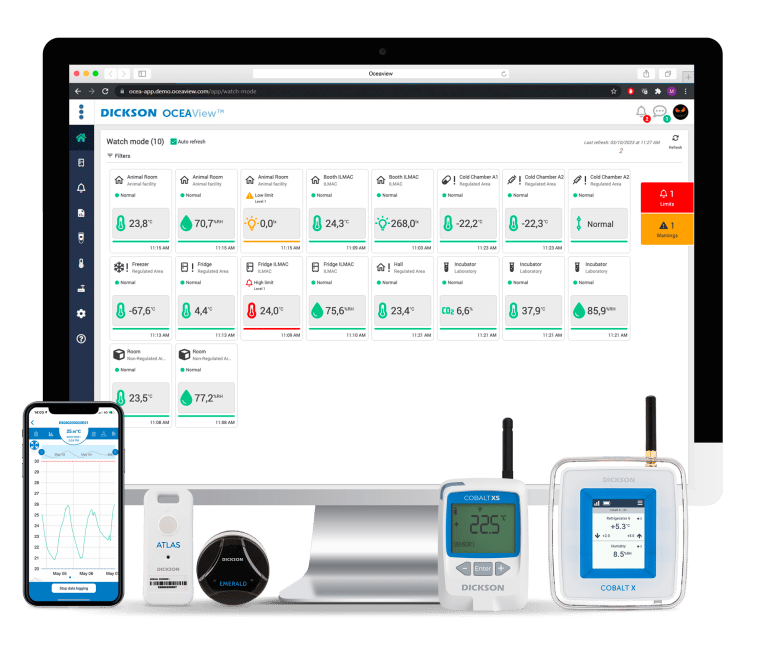

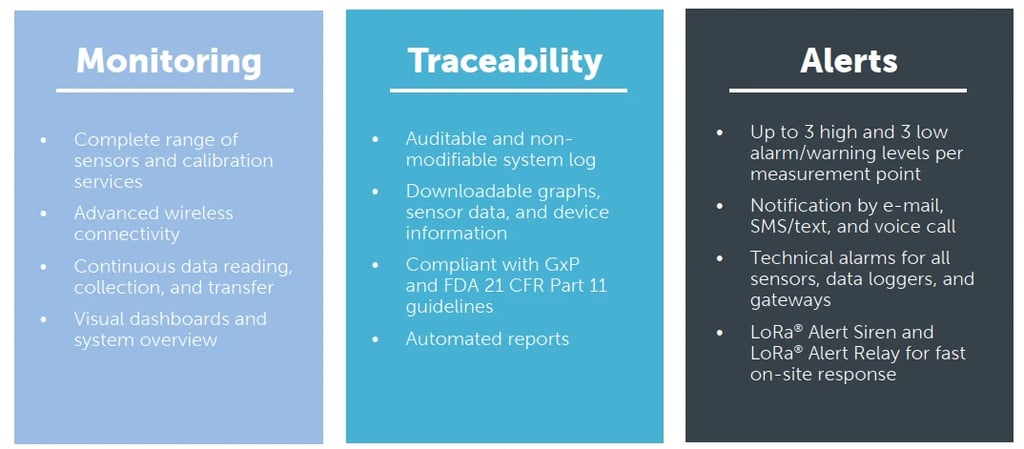

Environmental Monitoring System

Unified view of all your assets to simplify quick monitoring

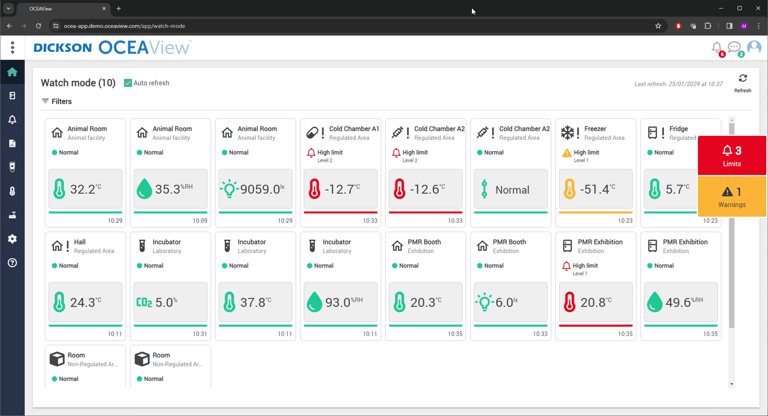

Main page

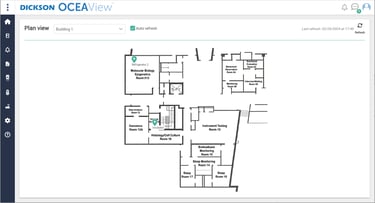

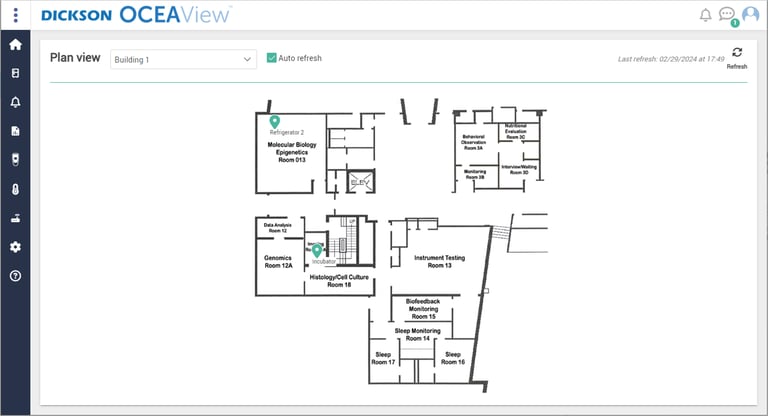

Insert floor plan or image for easier viewing

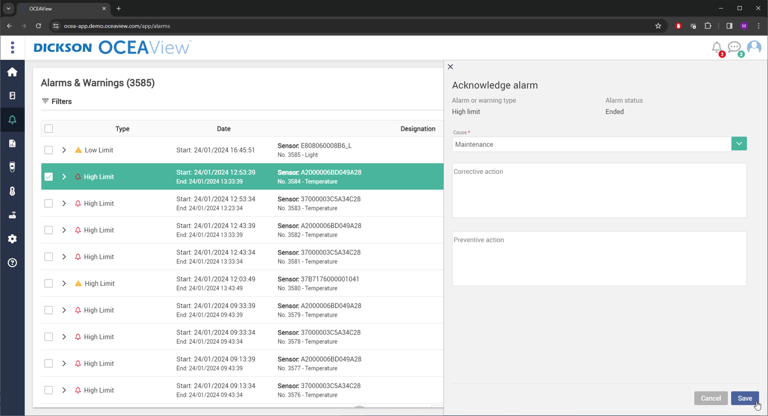

Alarm Management

View and acknowledge your alarms from the application

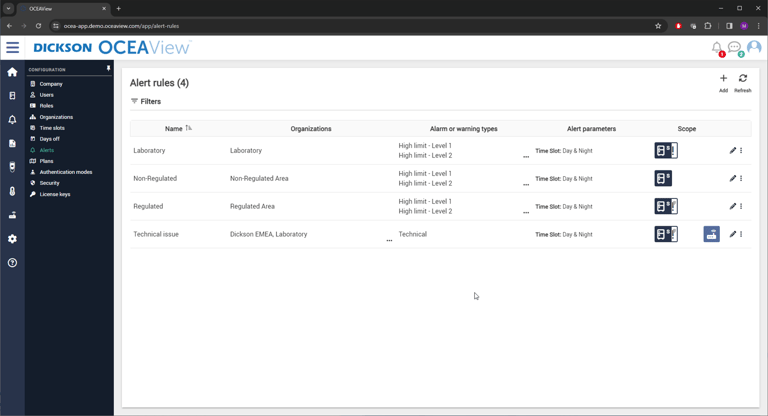

Highly customizable Alert Rules can be trigged depending on

• Time slots

• Weekdays and Days off

• Alarm level and/or Type

Alarm can be triggered using

• SMS

• Phone Calls

• Email

• Siren and Alert Relay devices

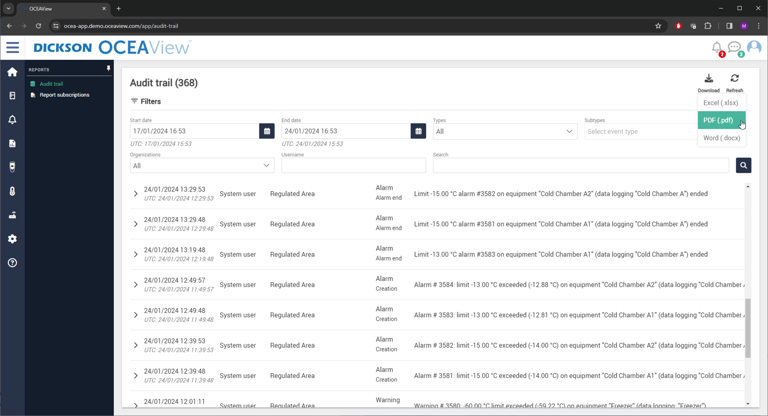

Audit Trail

Non-modifiable Audit Trail that can be searched or exported

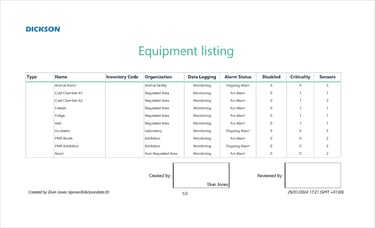

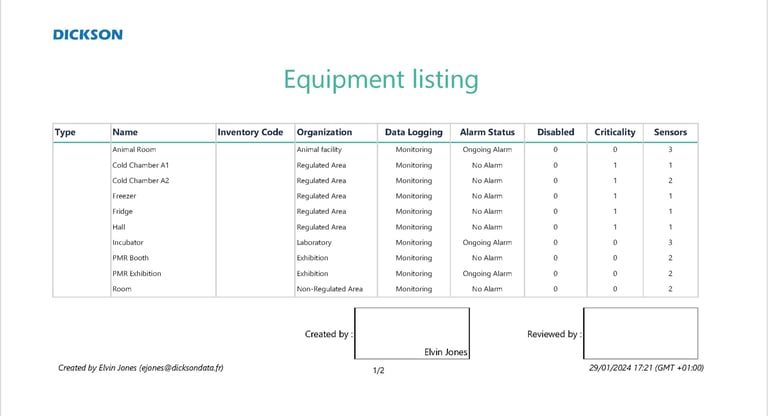

Reports

Audit ready report that can be exported in pdf and other formats

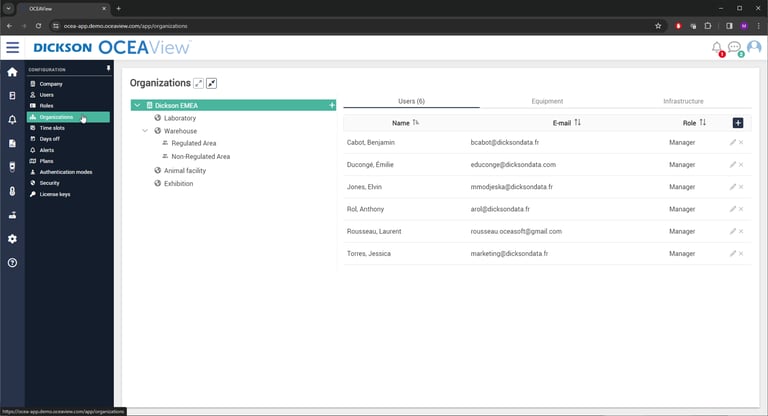

User Roles

Customizable user roles ensures that each user can have access to relevant informaiton, based on the organizational structure

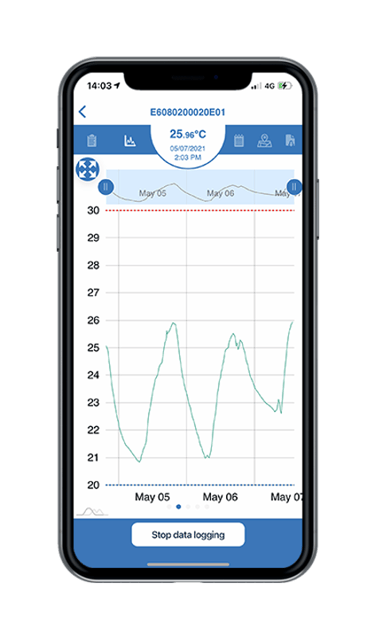

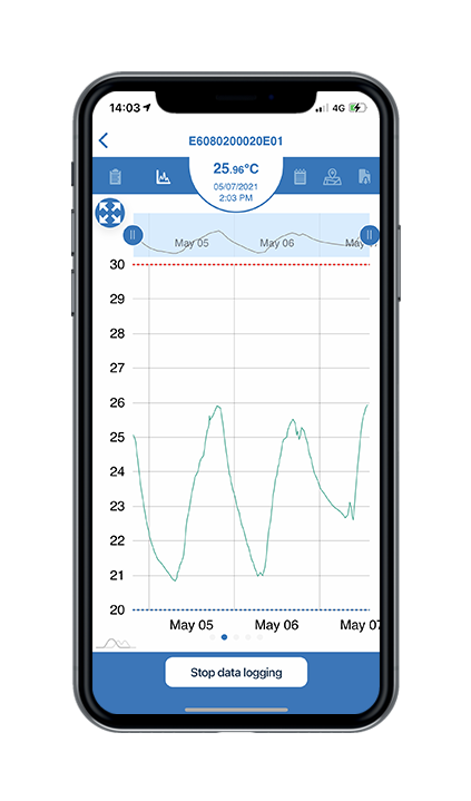

Mobile App

Designed for in-transit monitoring and hardware maintenance

• Seamless access and management for your Bluetooth data loggers

• Wireless collection of data logger readings

• Basic user of data reading and export or advanced use with data storage and audit trail, without cloud hosting

• Compatible with iOS and Android smartphones

Layout view

Datalogger

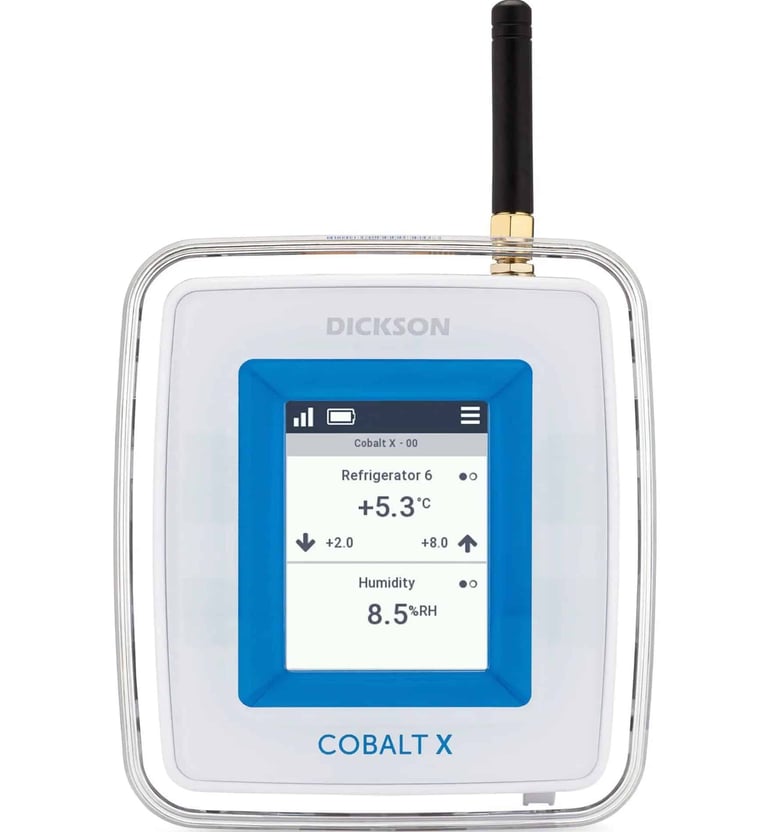

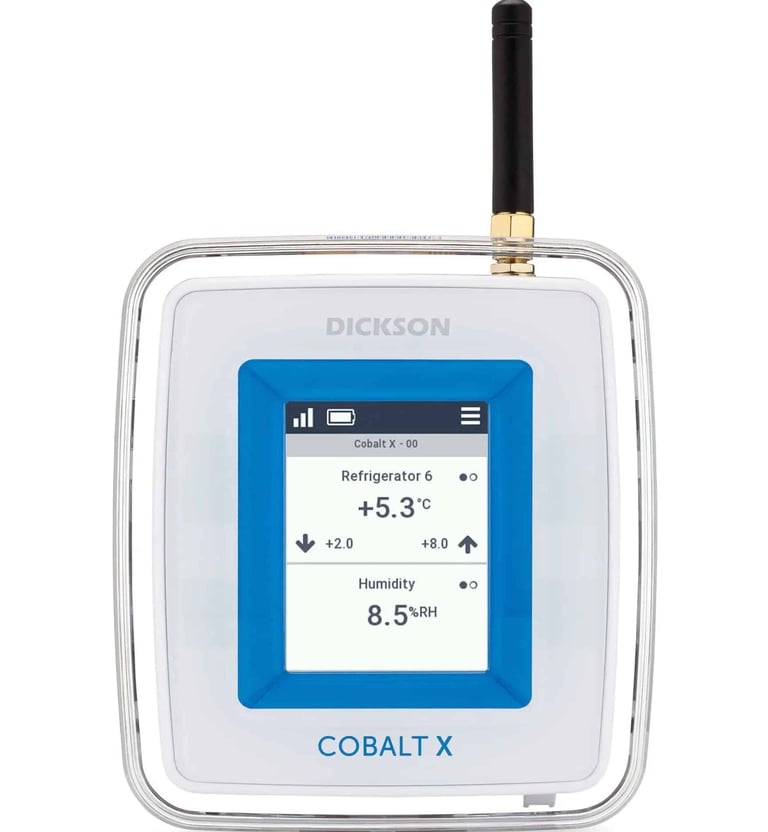

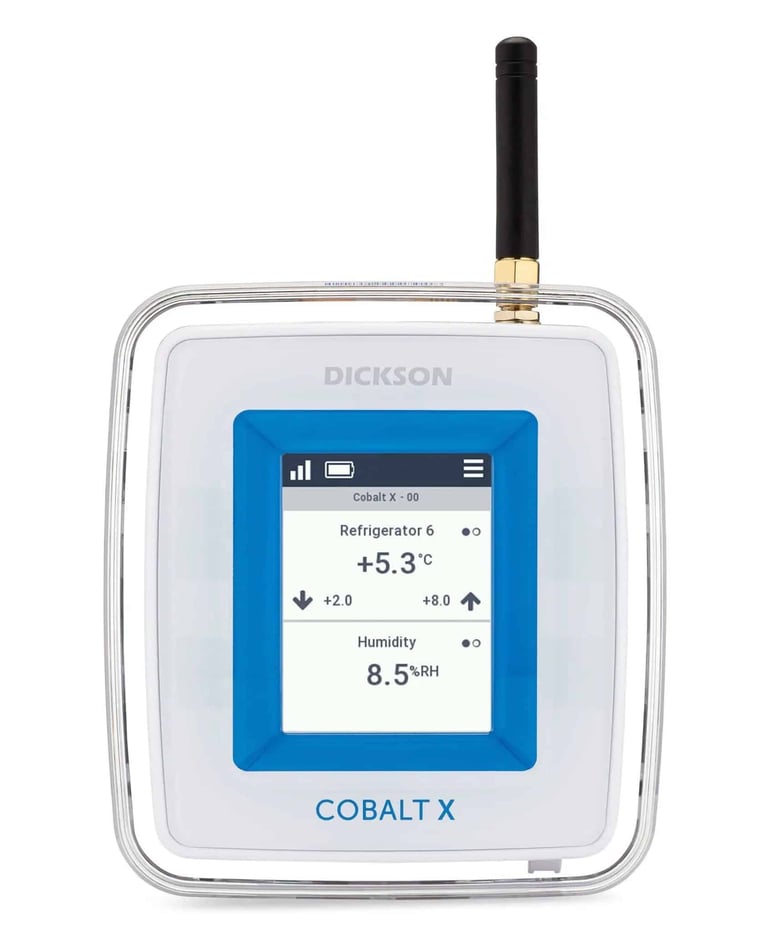

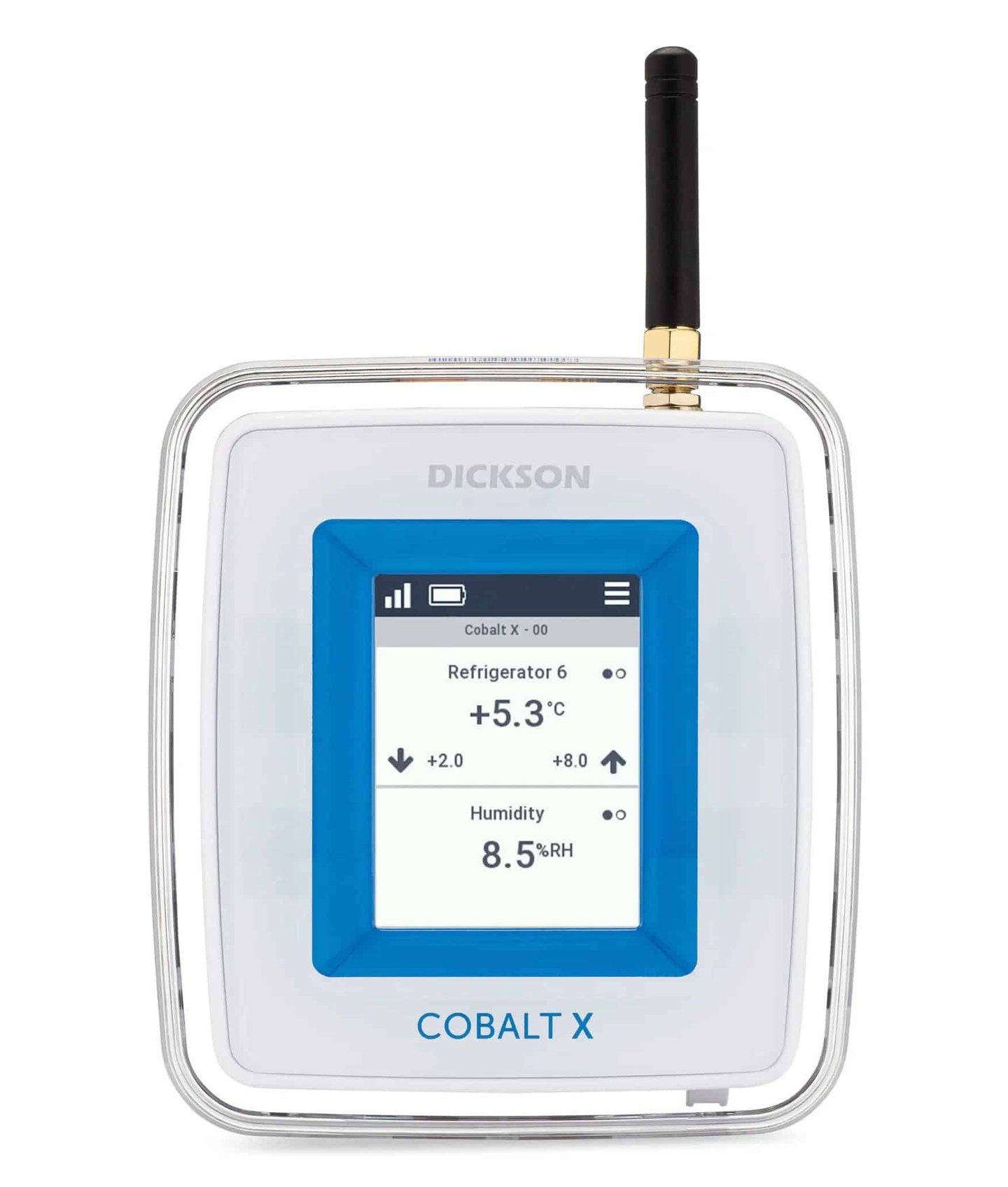

Cobalt X2

• Touch-screen for easy alarm acknowledgement and setup

• Compatible with Temperature, humidity, pressure, CO2, current, dry contact, light sensors (All sensors)

• On-screen alarm acknowledgement (with PIN code)

• Alarm LED with buzzer (buzz when AC powered)

• Battery or AC power

• Connect up to 4 measurement points

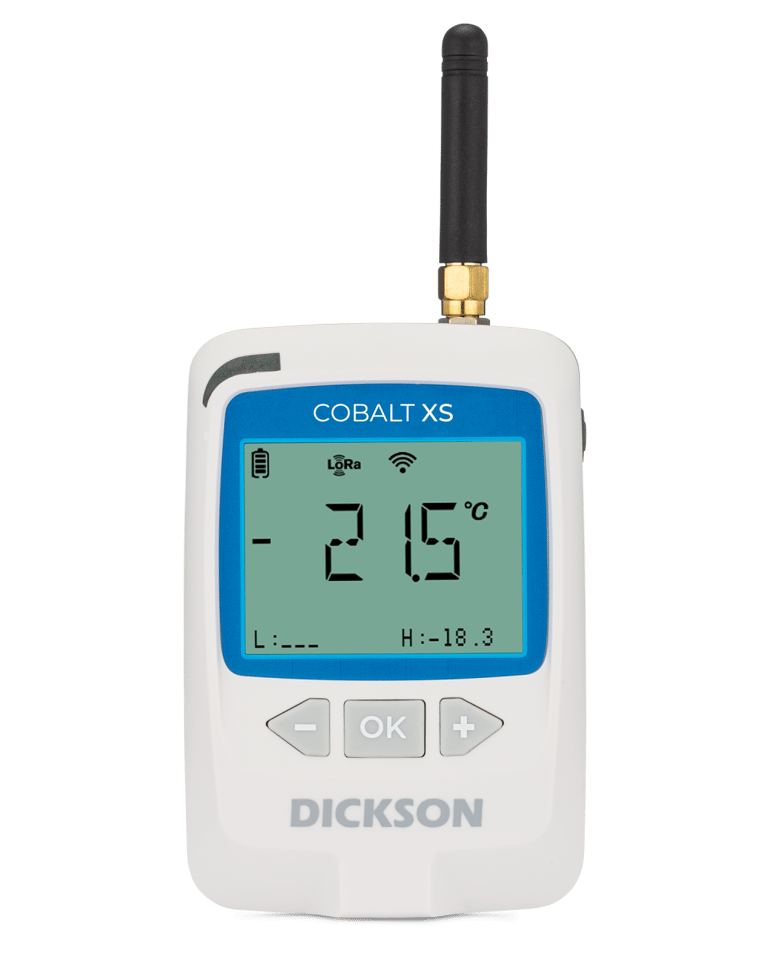

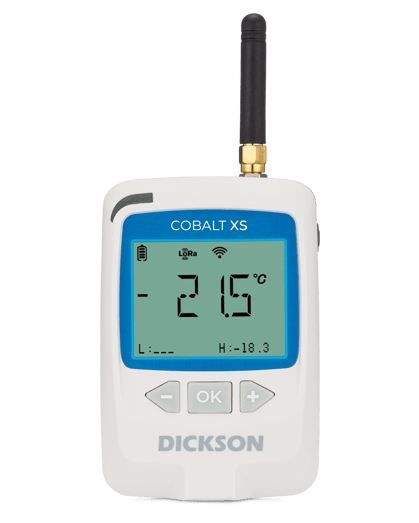

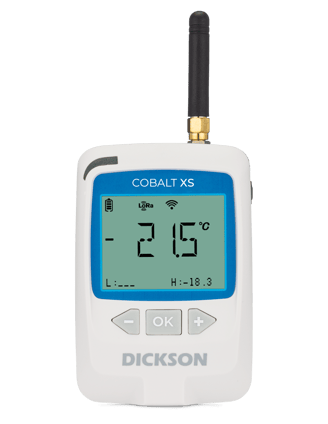

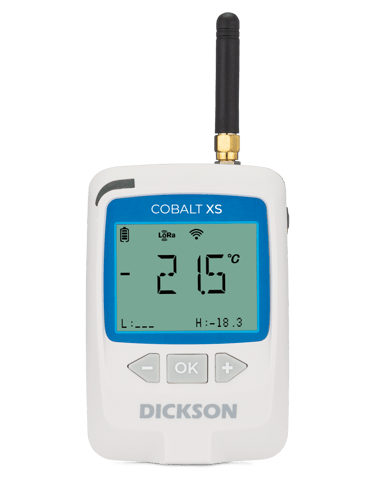

Cobalt XS

• Button Controlled high contrast LCD screen

• Compatible with Temperature and humidity sensors

• Alarm LED

• Battery power

• Connect up to 2 measurement points

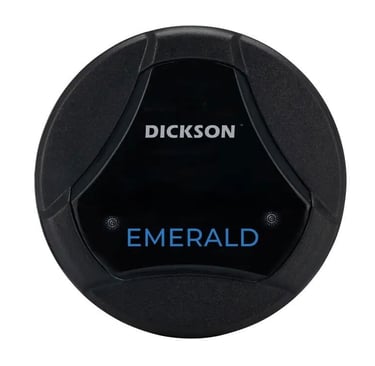

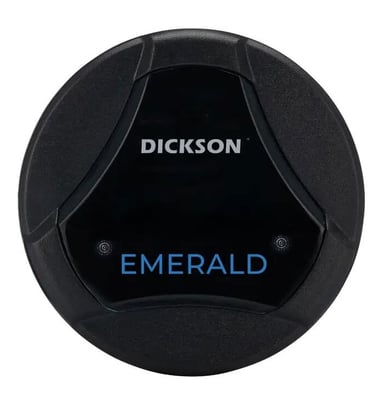

Emerald

• Connects to Cobalt X2 via Bluetooth

• Shock resistance

• Internal Sensor or External Sensor

• Temperature range: --40°C to +85°C

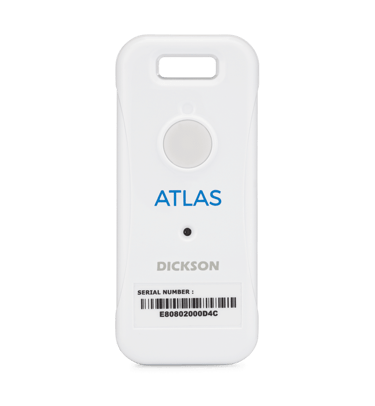

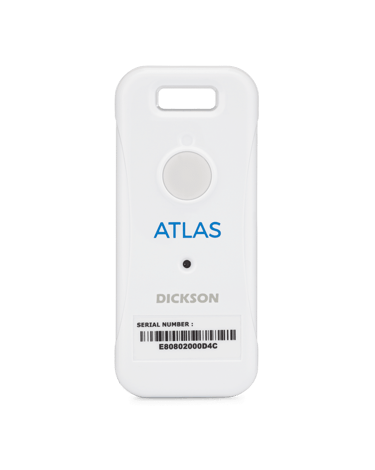

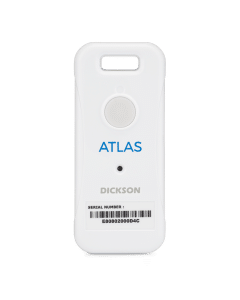

Atlas

• Bluetooth connectivity

• Internal Temperature, Relative Humidity and Light sensors

• Small size for placement with goods or items to monitor

Sensor

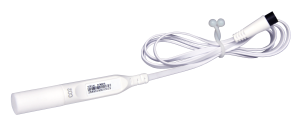

Humidity, Temperature and CO2 Smart Sensor

• Calibration coefficients stored directly in sensor memory

• Temperature Range: 0°C to +50°C

• Humidity Range: 5% to 95% rH

• CO2 Range: 0 to 20%

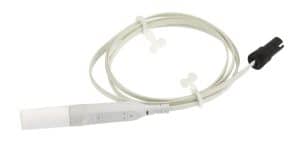

Humidity and Temperature Smart Sensor

• Calibration coefficients stored directly in sensor memory

• Temperature Range: -40°C to +100°C

• Humidity Range: 0% to 99.9% rH

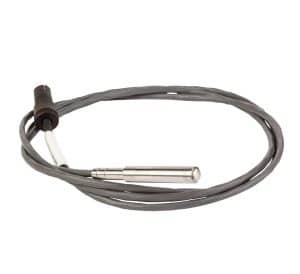

Digital Temperature Sensor

• Temperature Range: -40°C to +120°C

• Standard or submersible

Pt100 Smart Sensor

• Calibration coefficients stored directly in sensor memory

• Temperature Range: -100°C to +200°C or -100°C to +50°C

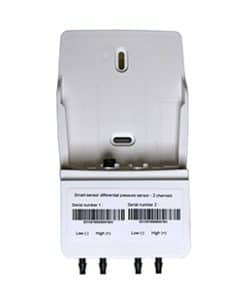

Dual Differential Pressure Smart Sensor

• Calibration coefficients stored directly in sensor memory

• Differential Pressure Range: -500 Pa to +500 Pa

• Measures up to 2 differential pressure

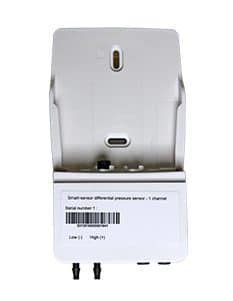

Single Differential Pressure Smart Sensor

• Calibration coefficients stored directly in sensor memory

• Differential Pressure Range: -500 Pa to +500 Pa

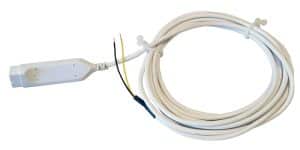

Universal Smart Sensor

• Calibration coefficients stored directly in sensor memory

• Measures electrical current from industry standard equipment with 4-20mA, 0-5V, or 0-10V

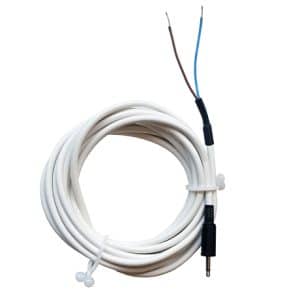

Dry Contact Cable

• Dry contact output
  (door opening-closing, uninterruptible power supplies,
  air condition units, ultra-low-temperature freezers)

• Open/Close (On/Off) detection

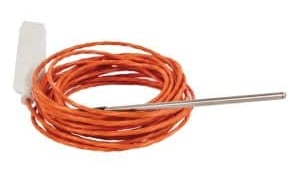

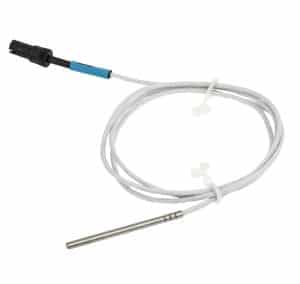

Pt100 Sensor for Emerald

• External Sensor for Emerald Datalogger

• Temperature range: --20°C to +50°C

Gateway

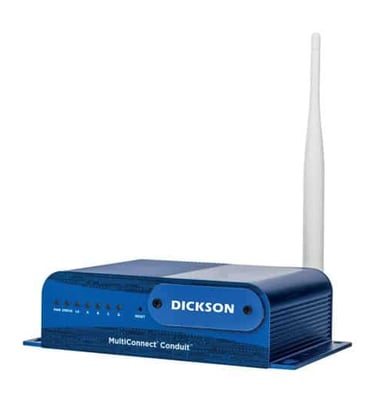

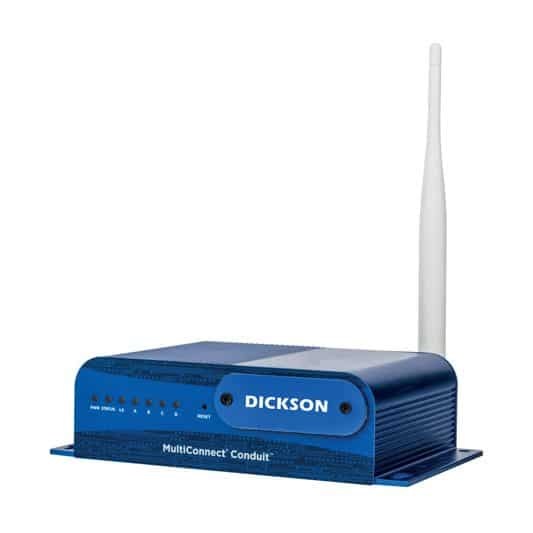

LoRa Advanced Gateway

• Ethernet, WiFi and/or 4G-LTE

• Metal Casing

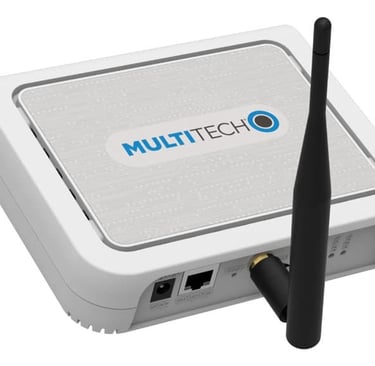

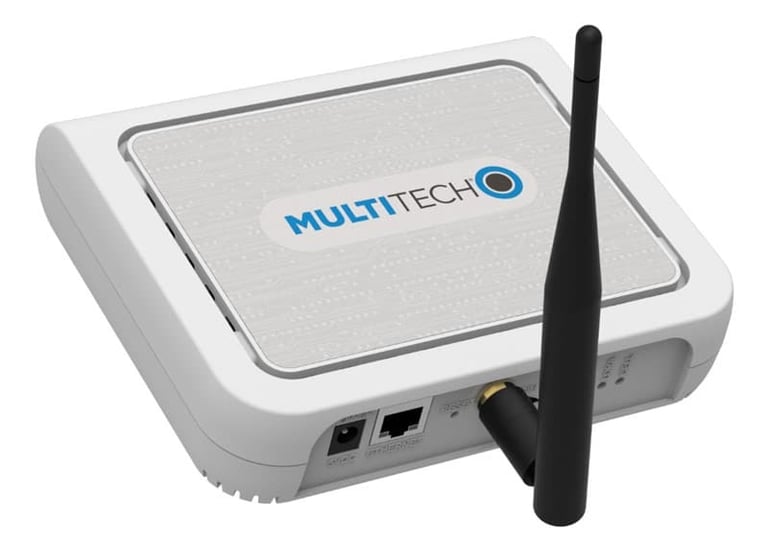

LoRa Pro Gateway

• Ethernet and/or 4G-LTE

• Plastic Casing

Alerts

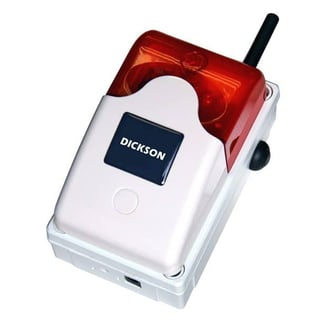

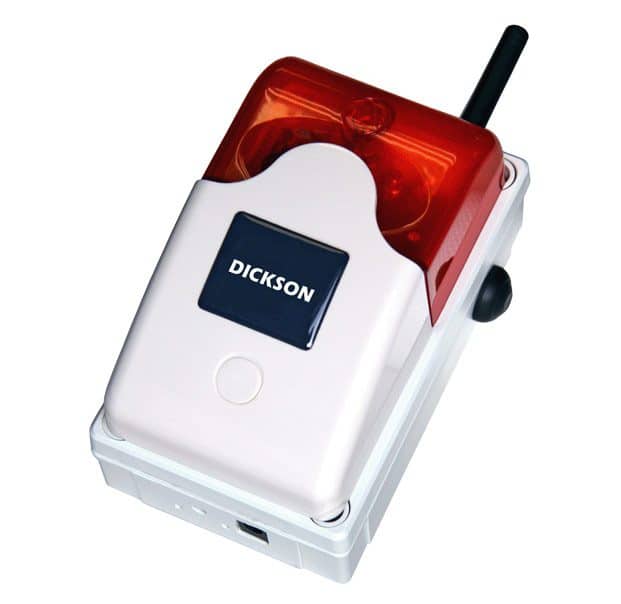

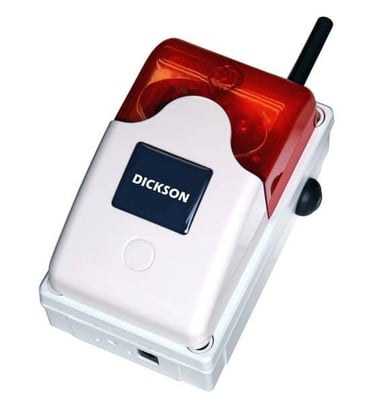

LoRa Alert Siren

• Adjustable siren volume

• Push Button for snooze, setup and test

• AC power, backup battery for wireless connection

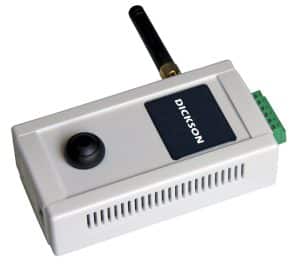

LoRaWAN Dry Contact Relay

• Opens/Closes relays to trigger your alert devices

• Two "normally open" or "normally closed" terminals

• AC power, backup battery for wireless connection
