Pressure
General Description

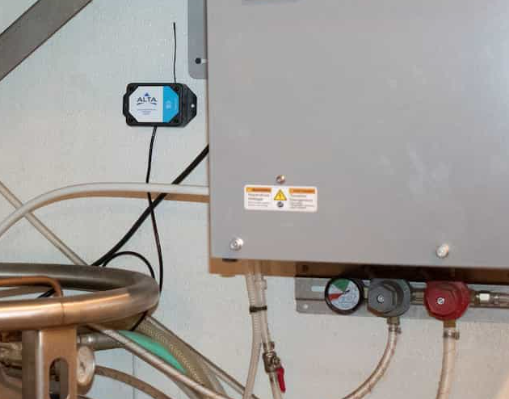

The ALTA® Wireless PSIG Pressure Meter measures gauge pressure in a gas, liquid, or vapor supply line.
Key Features
Transducers available: 50, 300, 750, 3000 PSIG
Resolution: 0.1 PSI
Accuracy:
- Uncalibrated: ± 2% of reading + 1.05% FS
- Calibrated: ± 0.5% of reading + 0.5% FS
Configurable thresholds for critical condition monitoring
Principles of Operation
The ALTA Wireless Pressure Meter uses an industrial-grade pressure transducer to measure pressure on a user-configurable time interval or Heartbeat. On every Heartbeat, the pressure transducer is energized and a proportional analog voltage is converted to a digital pressure measurement. This measurement is then sent to the gateway, making the data available in iMonnit or another approved data service.
The ALTA Pressure Meter can be calibrated for improved accuracy. Also, remember to remove the pressure from the sensor when performing maintenance on this device.
Features of Monnit ALTA Sensors
Wireless range of 2,000+ feet through 18+ walls1
Frequency-Hopping Spread Spectrum (FHSS)
Best-in-class interference immunity
Best-in-class power management for longer battery life2
Encrypt-RF® Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):
10-minute Heartbeats = ~ 22 days
2-hour Heartbeats = ~ 266 days
Automatic over-the-air updates to sensor firmware (future-proof)
Free iMonnit Basic Online Wireless Sensor Monitoring and Notification System to configure sensors, view data, and send alerts via SMS text, email, and voice call
1 Actual range may vary depending on the environment and gateway.
2 Battery life is determined by the sensor reporting frequency and other variables. Other power options are also available
