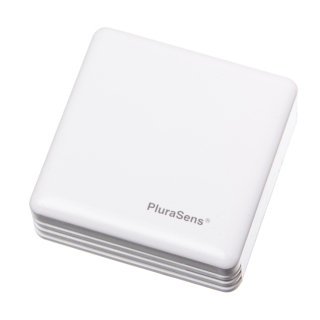

Humidity & Temperature Transmitter E2227
Features
Digital sensors with excellent repeatability and stability
Fully calibrated and temperature compensated
RS485 Modbus RTU interface
Two configurable 0-10 V / 4-20 mA outputs
Description
Evikon E2227 Humidity and temperature transmitter is intended for measurement of relative and absolute humidity, temperature and dew point value of air with high accuracy and stability.
The transmitter is designed for indoors use, target applications being home and office HVAC and building automation systems. Compact wall-mount slotted plastic enclosure provides natural ventilation of the sensors.
RS485 interface supporting industry standard Modbus RTU protocol allows direct Fieldbus networking of up to 240 devices. Analog outputs, user switchable to 0-10 V or 4-20 mA may be used to connect the transmitter to a range of secondary instruments, like display panels or controllers.
Technical Data
Ranges | 0...95 %RH, -20...+70 °C |
Analog outputs | 2 × 0-10 V or 4-20 mA, selectable |
Output scale | freely adjustable within measurement ranges |
Resolution | 0,01 %RH / 0,01 °C |
Accuracy | ±2,5 %RH / ±0,5 °C |
±1,8 % RH / ±0,3 °C on request | |
Supply | 11...30 VDC, nominal 12 / 24 VDC |
Operating conditions | -20...+70 °C, 0...95 %RH, |
no condensing | |
Enclosure | interior wall-mount, |
white plastic 71×71×27 mm, IP20 |
