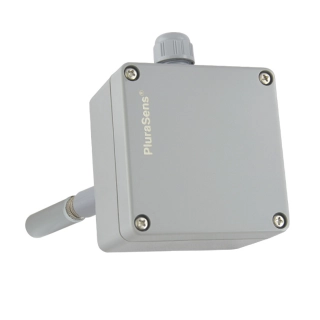

Humidity & Temperature Transmitter - Duct Mount E2218-DM
Features
Mountable into ventilation airducts
Relative/absolute humidity, dew point, T
Industrial IP65 protected enclosure
Two configurable 0-10 V / 4-20 mA outputs
RS485 Modbus RTU digital interface
Description
Evikon E2218-DM Humidity and temperature transmitter is a member of new PluraSens® family of multifunctional measurement instruments. The transmitter is intended for measurement of relative and absolute humidity, temperature and dew point value in air with high accuracy and stability in non-aggressive gases.

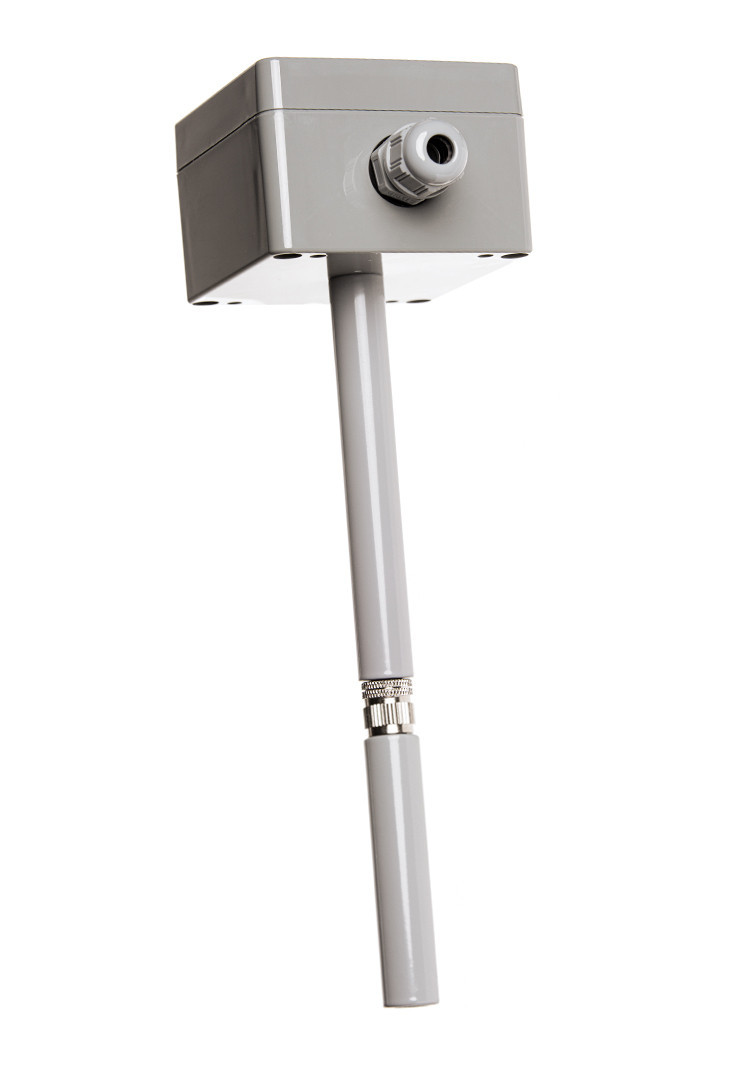

E2218-DM features two freely configurable analog outputs 4-20 mA / 0-10 V and RS485 Modbus RTU interface for direct Fieldbus networking. The sensors are located at the tip of 200 mm long stem, intended for insertion into ventilation airducts.
Technical Data
Ranges | 0...100 %RH, -40...+85 °C |
Analog output option | 2 × 3-wire 0-10 V or 4-20 mA, programmable |
Output scale | freely adjustable within measurement ranges |
Resolution | 0,01 %RH / 0,01 °C |
Accuracy | ±2,5 %RH, ±0,3 °C |
±1,8 %RH / ±0,3 °C on request | |
Power supply | 12...36 VDC (default) |
24 VAC as option | |
Operating conditions | -40...+85 °C, 0...99 %RH (non-condensing) |
Electromagnetic compatibility (CE marking) | according to 89-336-EEC and EN61326-1 requirements |
