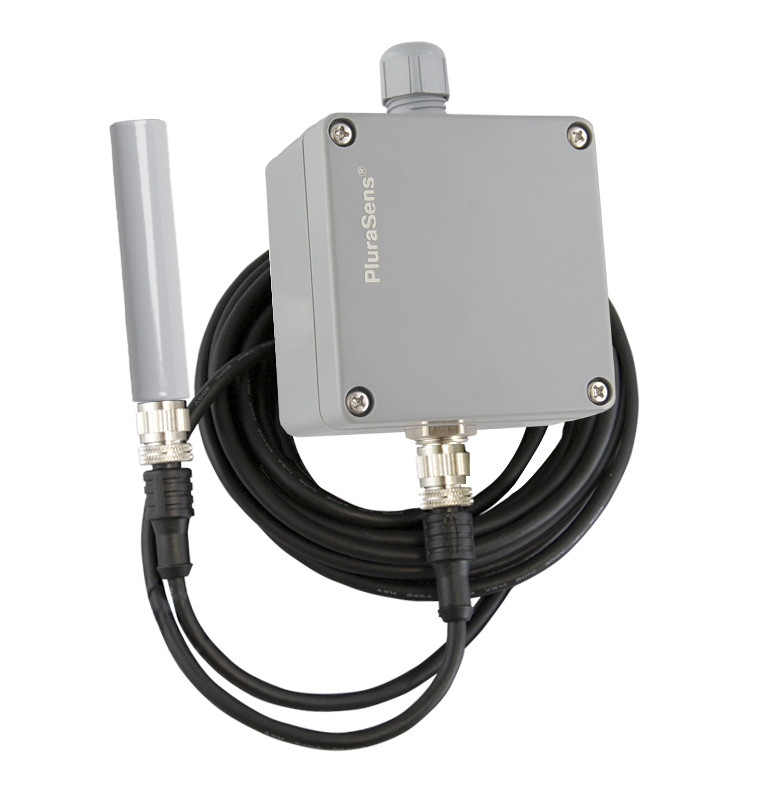

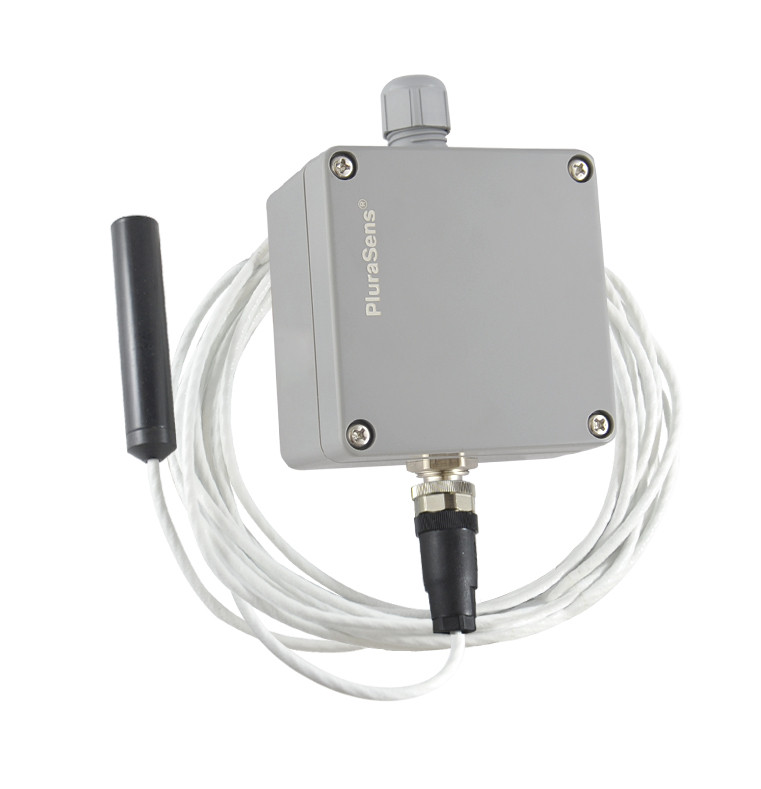

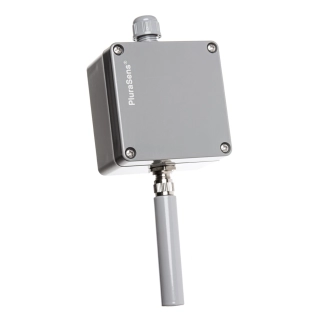

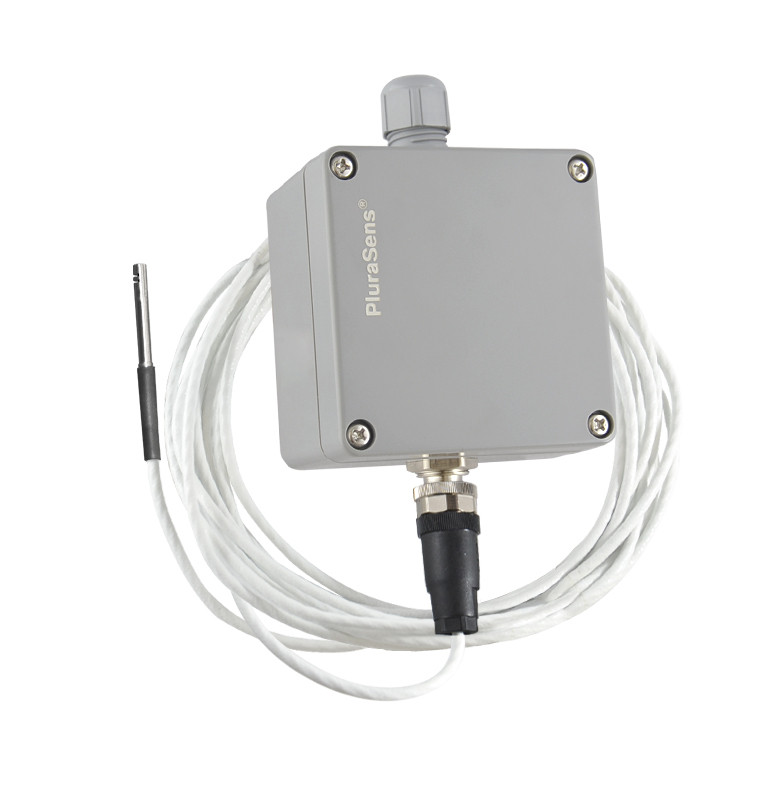

Humidity & Temperature Transmitter E2218
Features
Industrial IP65 protected enclosure
Two 0-10 V or 4-20 mA switchable analog outputs
RS485 Modbus RTU digital interface
Attached or remote probes
Description
Evikon E2218 Humidity and temperature transmitter is a member of new PluraSens® family of multifunctional measurement instruments. The transmitter is intended for measurement of relative and absolute humidity, temperature and dew point value in air and non-aggressive gases with high accuracy and stability.
E2218 features two freely configurable analog outputs 4-20 mA / 0-10 V, RS485 Modbus RTU interface for direct Fieldbus networking and a range of attachable or remote probes for various applications.
Technical Data
Ranges | 0...100 %RH, -40...+85 or -40...+125 °C |
Analog output | 2 × 3-wire 0-10 V or 4-20 mA, programmable |
Output scale | freely adjustable within measurement ranges |
Resolution | 0,01 %RH / 0,01 °C |
Accuracy | ±2,5 %RH, ±0.3 °C |
±1.8 %RH, ±0.3 °C on request | |
Power supply | 12...36 VDC (default) |
24 VAC as option | |
Operating conditions | -40...+85 °C, 0...100 %RH (non-condensing) |
Electromagnetic compatibility | according to 2004/108/EEC, 2014/30/EU and EN61326-1 requirements |
